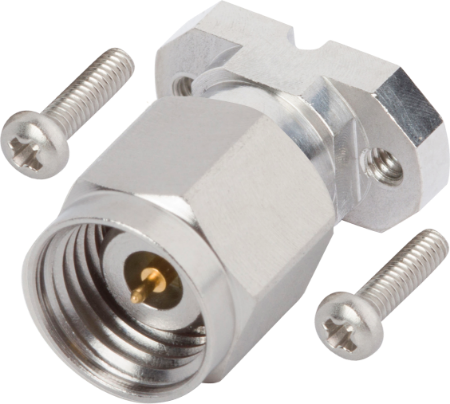

2.4mm Male Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)
P/N: SF1611-60021-1S

Loading...
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 1.85mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Intermateability 1.85mm
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
SF1621-60026-1S
2.4mm Connectors SF1621-60026-1S
Datasheet

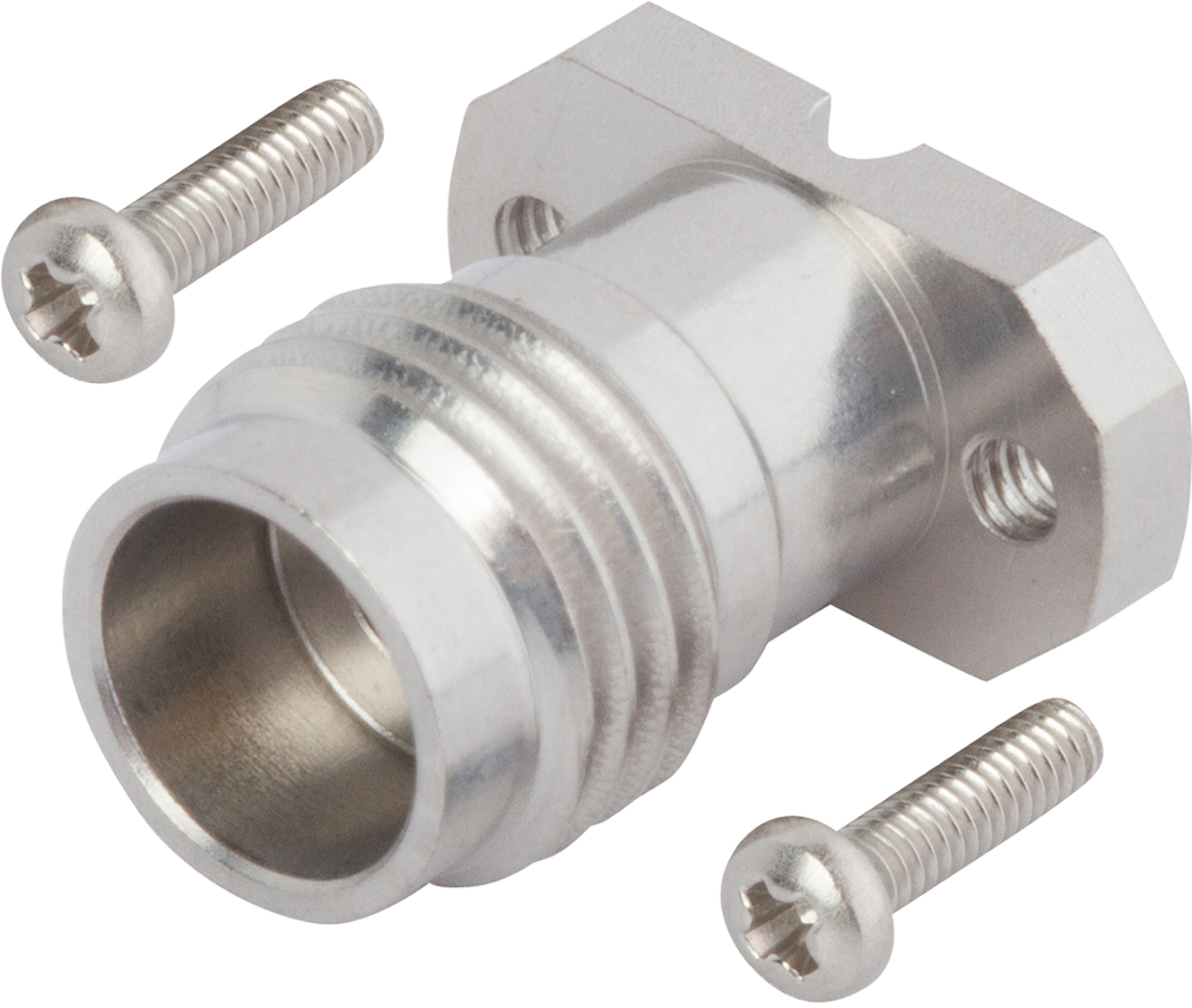

SF1621-60026-2S
2.4mm Connectors SF1621-60026-2S
Datasheet

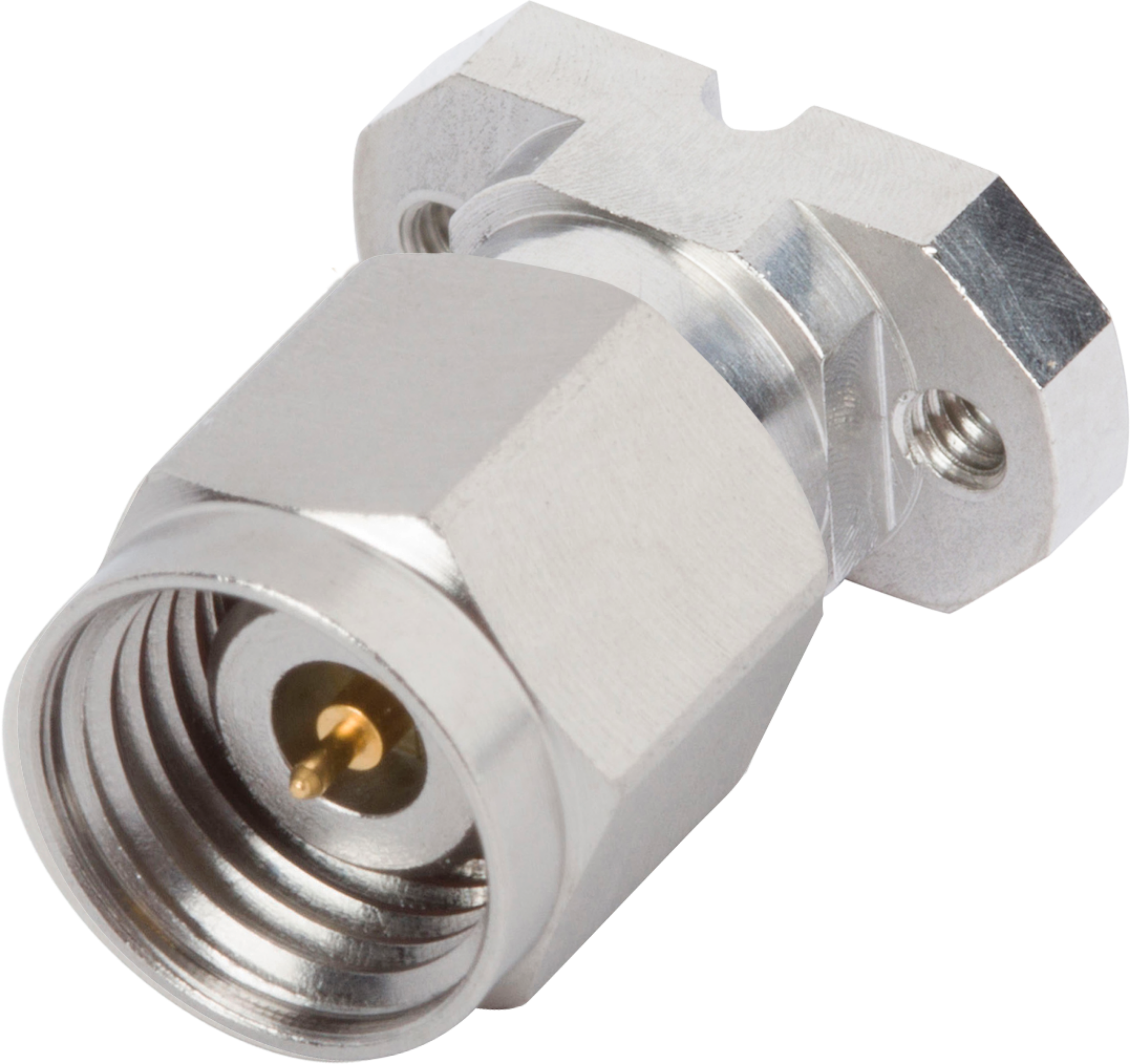

SF1611-60021
