Name: 2.4mm Male to SMPM Female 6" Cable Assembly for .047 Cable 7016-0068
SKU: 7016-0068
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	2.4 mm
Orientation (Body)	Straight
Gender	Plug (Male)
Coupling	Threaded
Termination Style	Solder
RF Series 2	SMPM
Gender 2	Jack (Female)
Orientation 2 (Body)	Straight
Cable Type	0.047 Flexible Coax
Cable Length	6"
Electrical
Frequency	40 GHz
Impedance	50 ohms
Dielectric withstanding Voltage	500 VRMS
Shielding Effectiveness	≥ -100 dB
Mechanical
Mating Cycles	500
Mating Torque	5 - 7 in - lbs
Intermateability	1.85mm
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Compliant This products meets the requirements for CE and UKCA.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:09:52 AM

2.4mm Male to SMPM Female 6" Cable Assembly for .047 Cable
P/N: 7016-0068

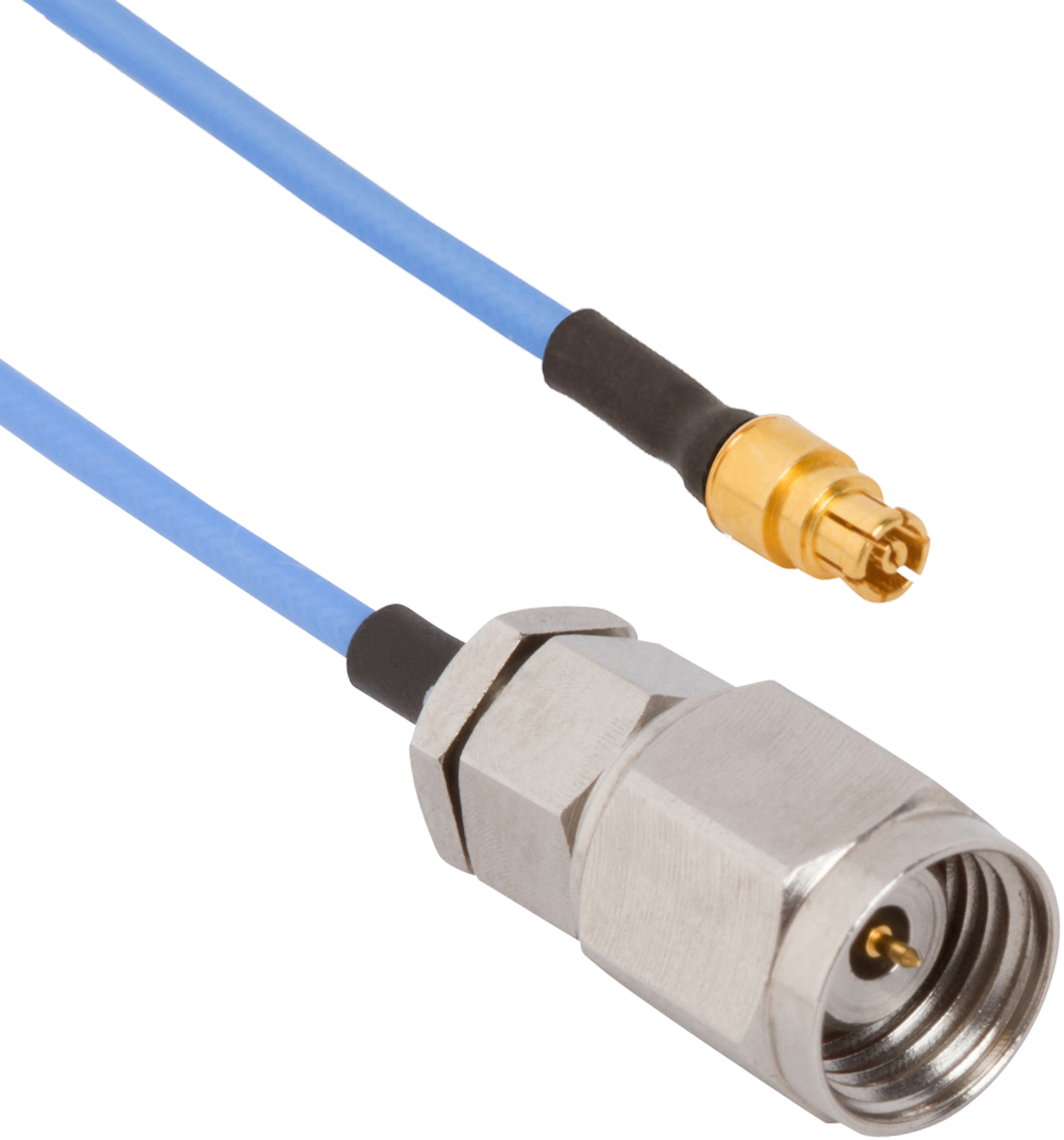

2.4mm Male to SMPM Female 12" Cable Assembly for .047 Cable
