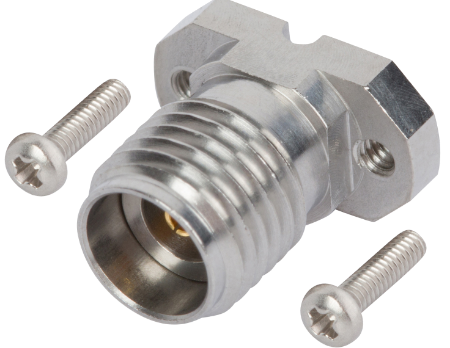

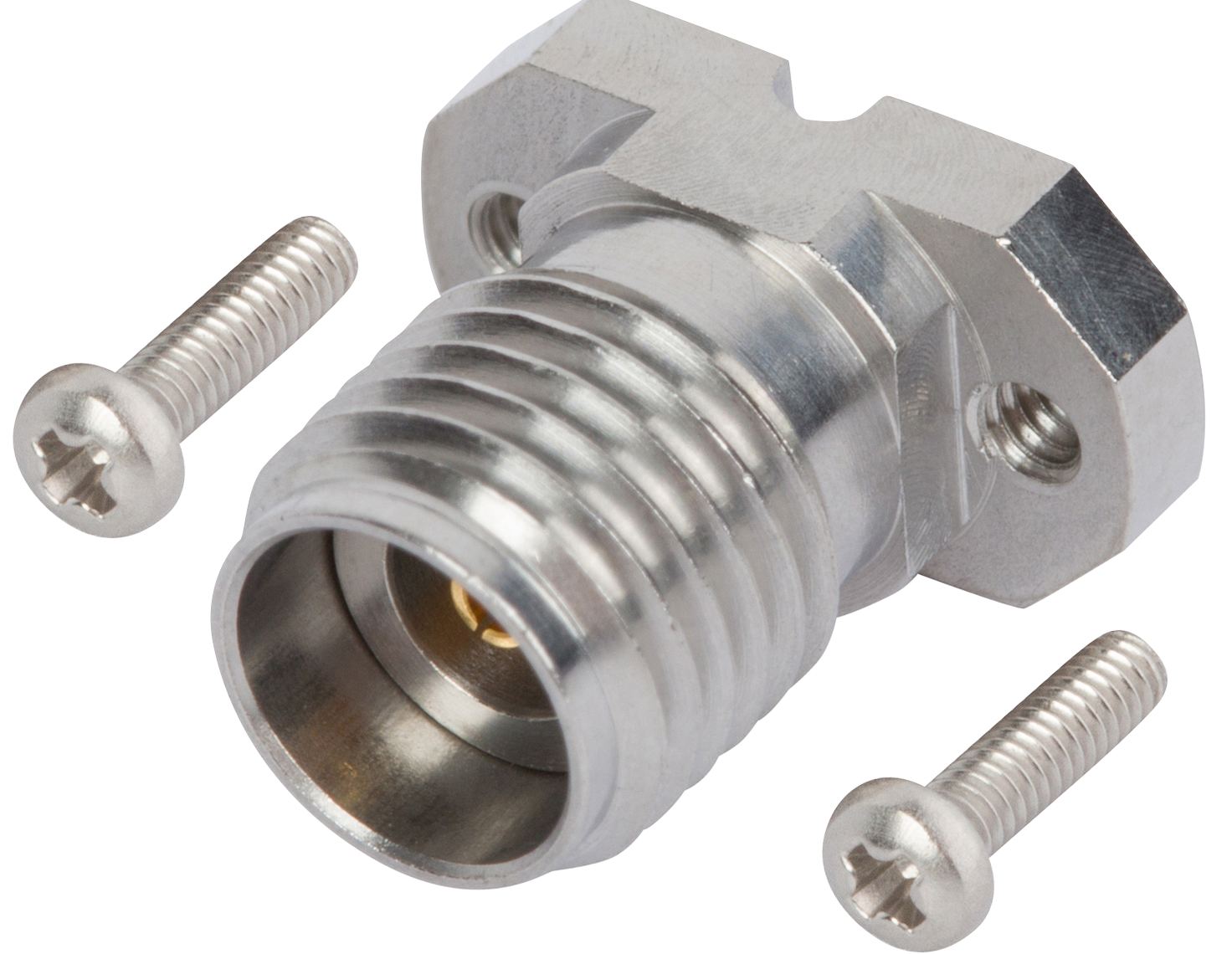

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole, with 4.76mm Screws (CPW / Microstrip)
P/N: SF1521-60115-1S

Loading...
Products specifications
Attribute name Attribute value
Family LiteTouch
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
Family LiteTouch
Gender Jack (Female)
Orientation (Body) Straight
RF Series 2.92 mm
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Coupling Threaded
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Intermateability SMA
Mating Torque 7 - 10 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Product tags
Customers Also Viewed
Part #   SF1521-60115

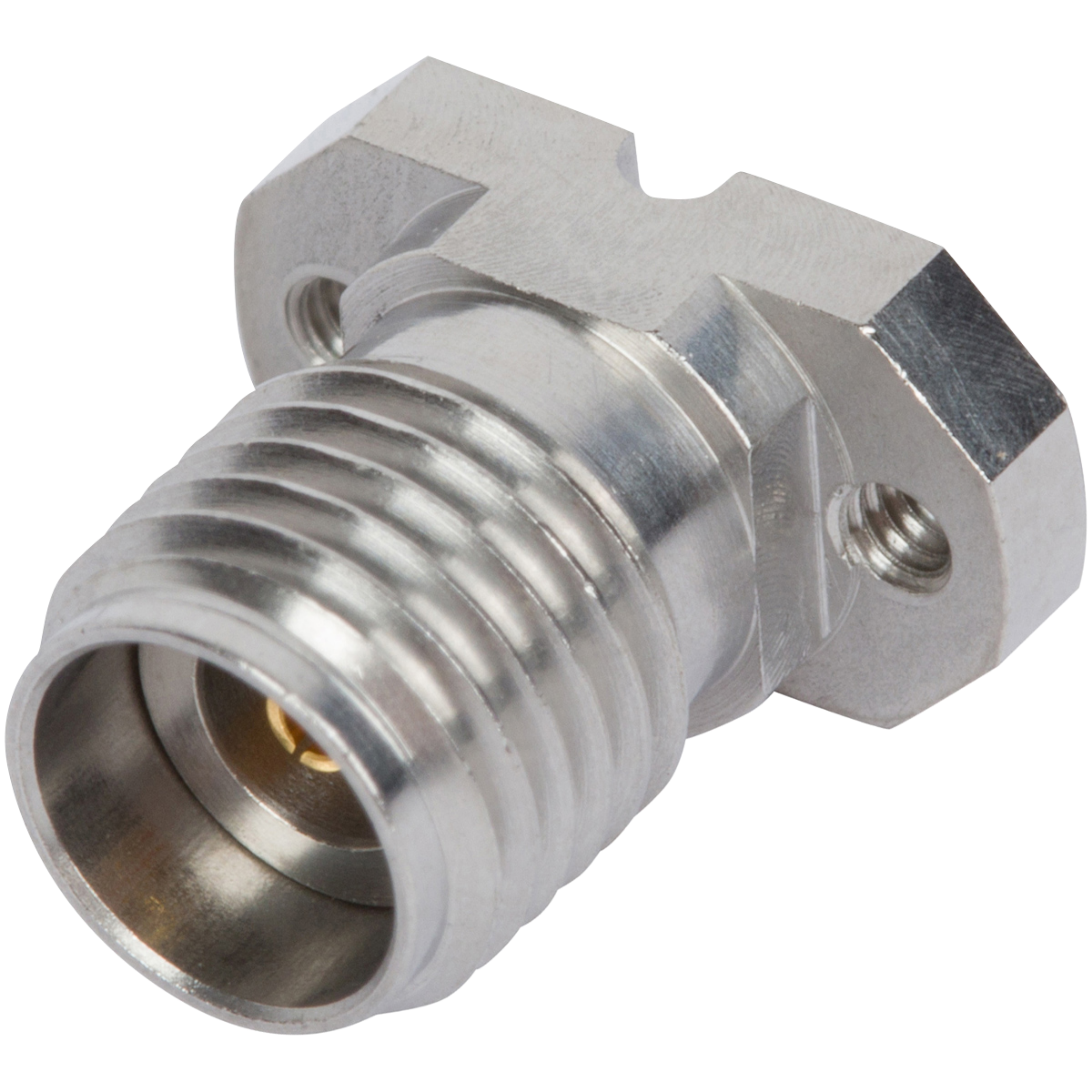

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

Available Inventory: 779
SF1521-60115
2.92mm Connectors SF1521-60115
Datasheet
Part #   SF1521-60124

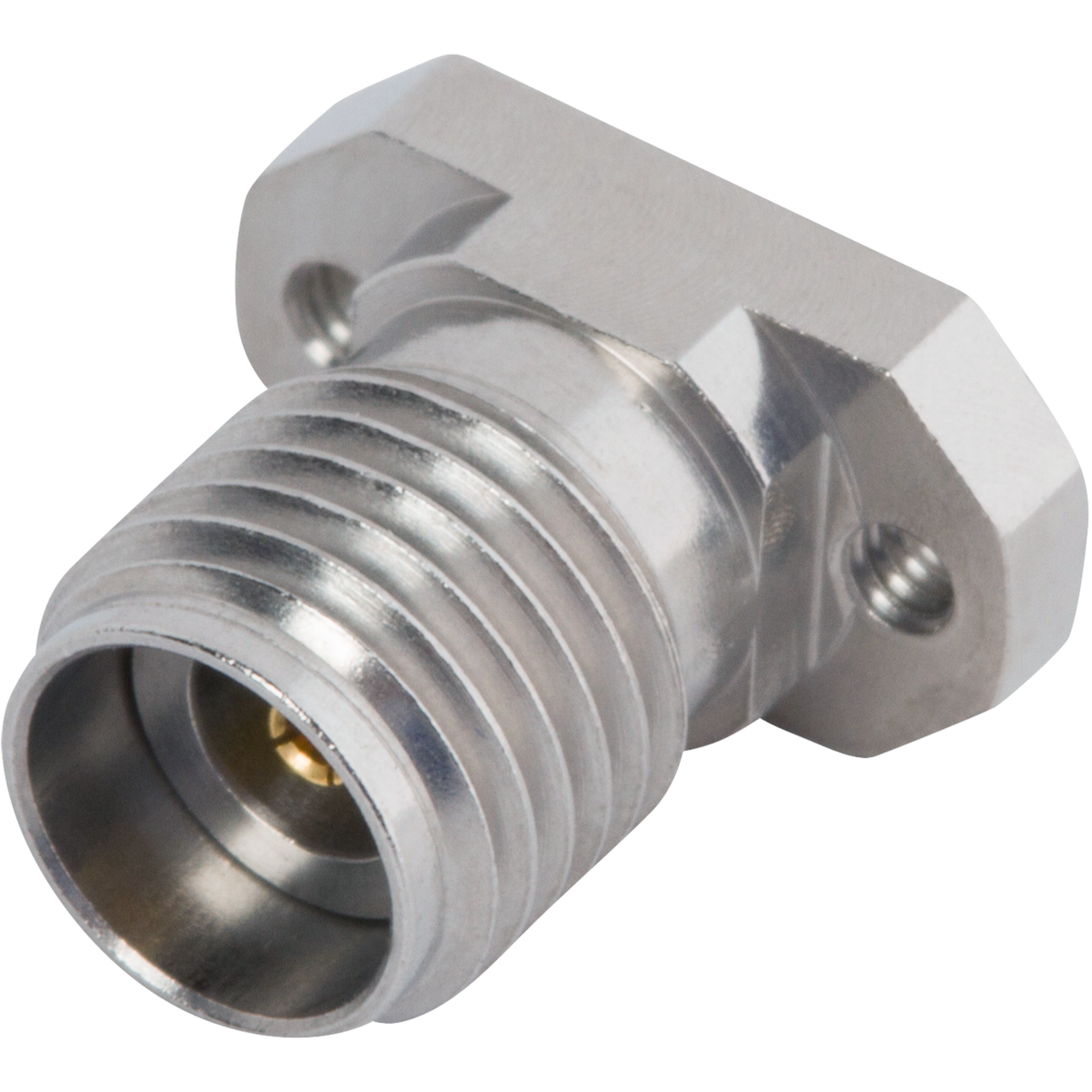

2.92mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 256
SF1521-60124
2.92mm Connectors SF1521-60124
Datasheet

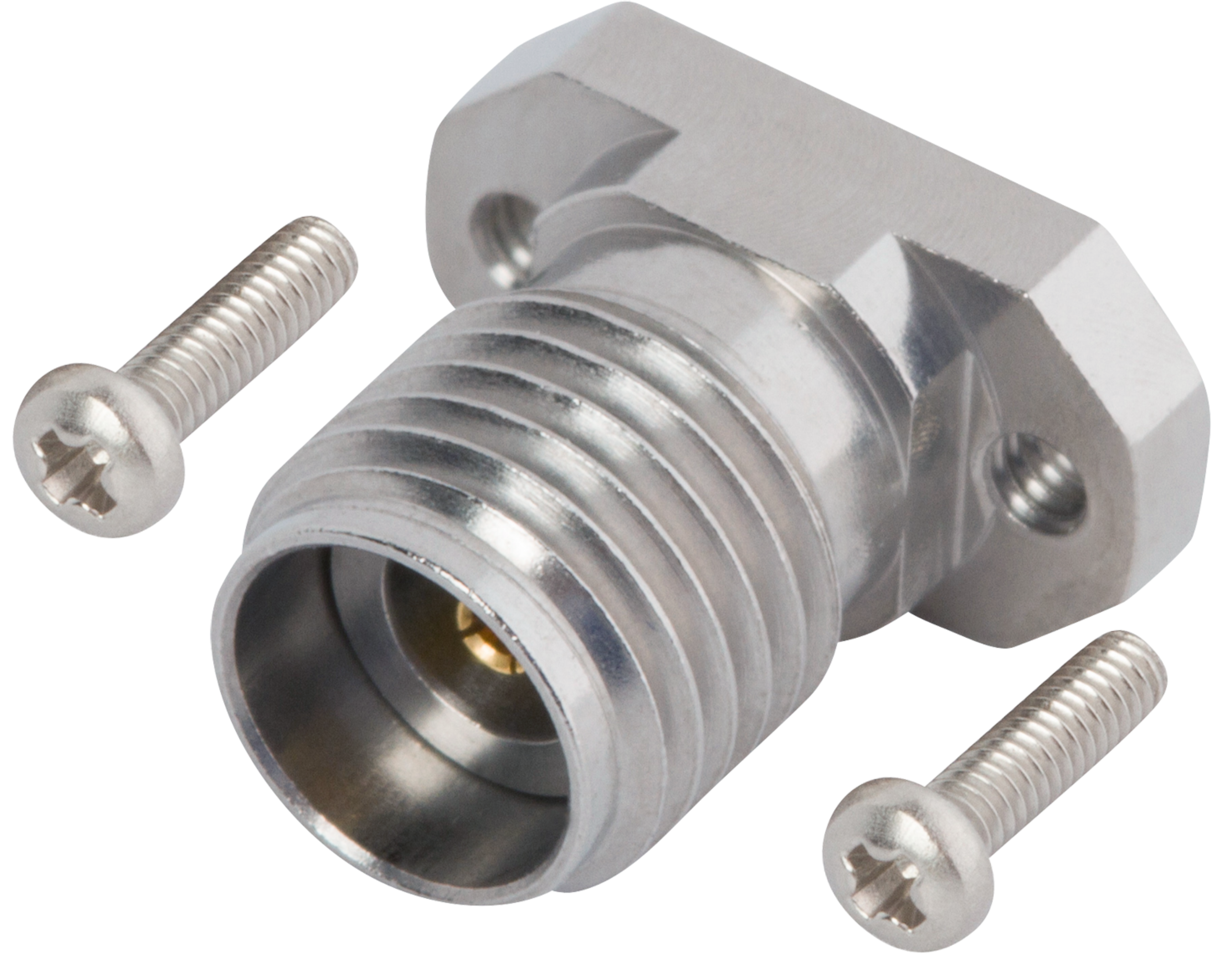

SF1521-60124-1S
