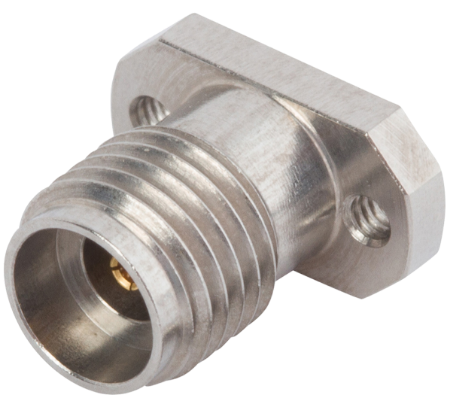

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
P/N: SF1521-60061

Loading...
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Finish Passivated
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed

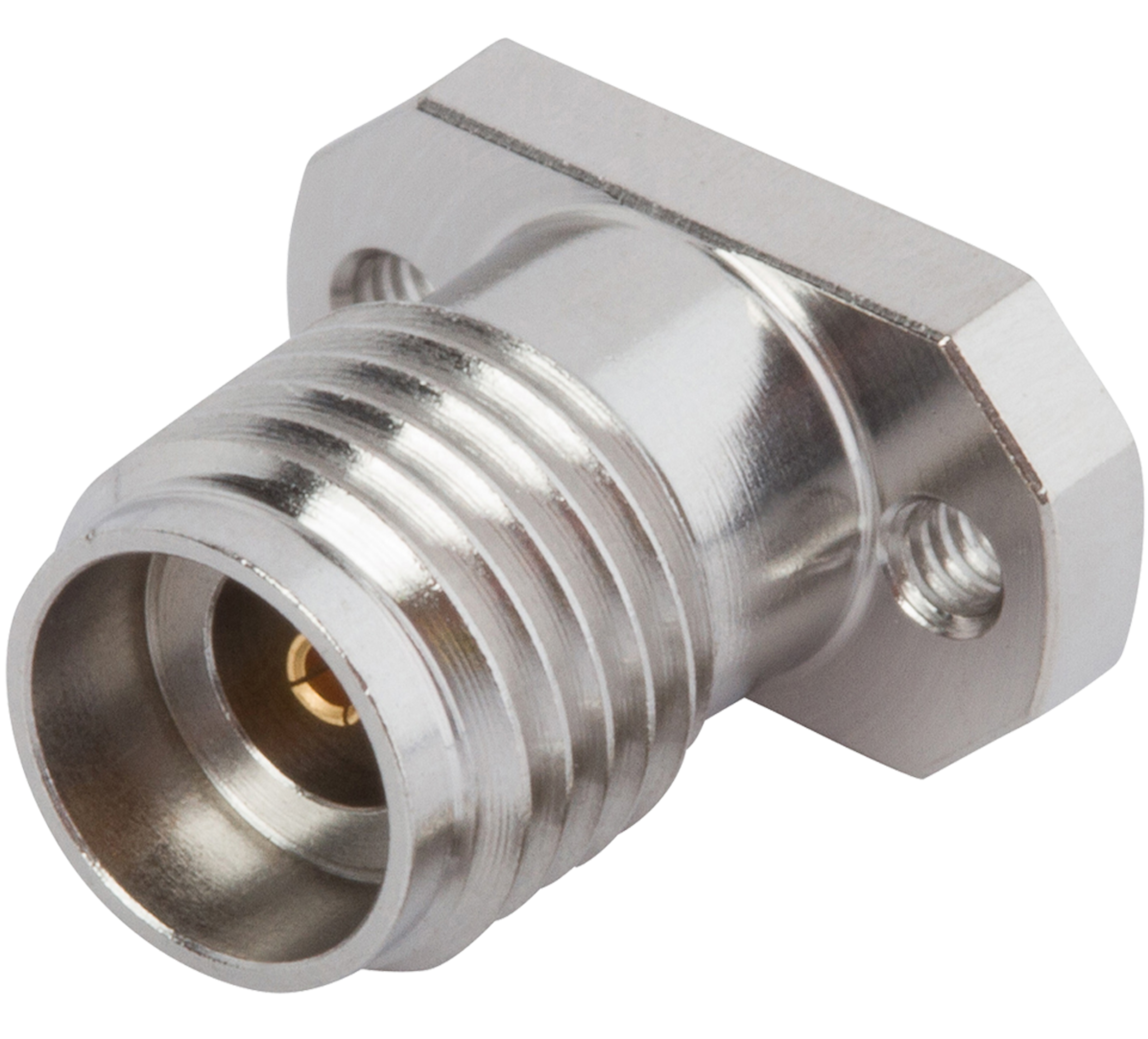

SF1521-60070
2.92mm Connectors SF1521-60070
Datasheet
SF1521-60061-1S
2.92mm Connectors SF1521-60061-1S
Datasheet

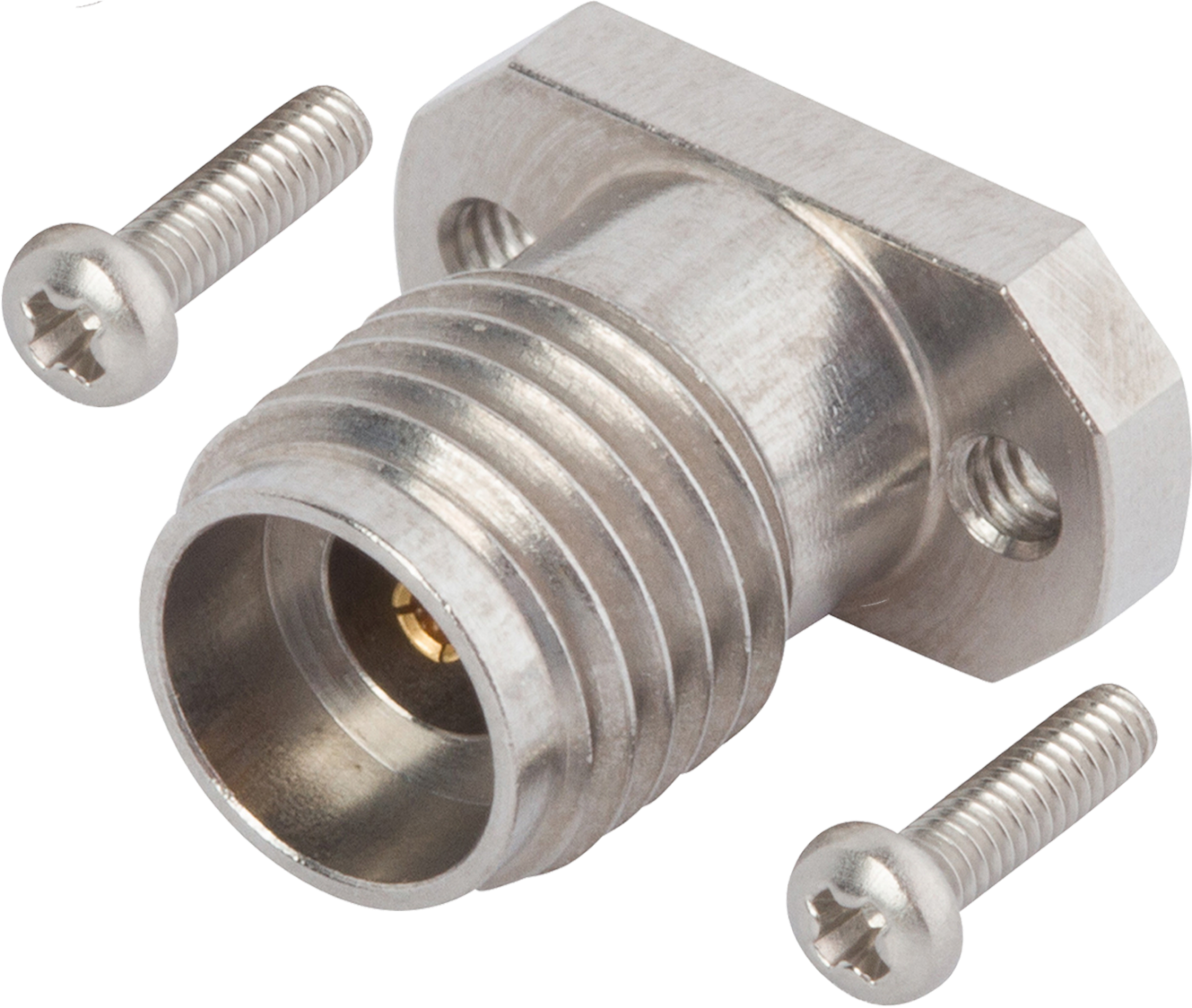

SF1521-60061-2S
