Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | 3mm Board-to-Board |
| RF Series | 3 mm |
| Electrical | |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force - SB | 2.8 lbs |
| Insertion Force - FD | 3.4 lbs |
| Withdrawal Force - SB | 2.5 lbs |
| Withdrawal Force - FD | 3.0 lbs |
| Axial Misalignment | .005 |
| Radial Misalignment | .007 |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Related products
012-80-487/020
3mm Connectors 012-80-487/020
012-80-488/020
3mm Connectors 012-80-488/020
012-80-485/185
3mm Connectors 012-80-485/185
012-80-484/185
3mm Connectors 012-80-484/185
Customers Also Viewed

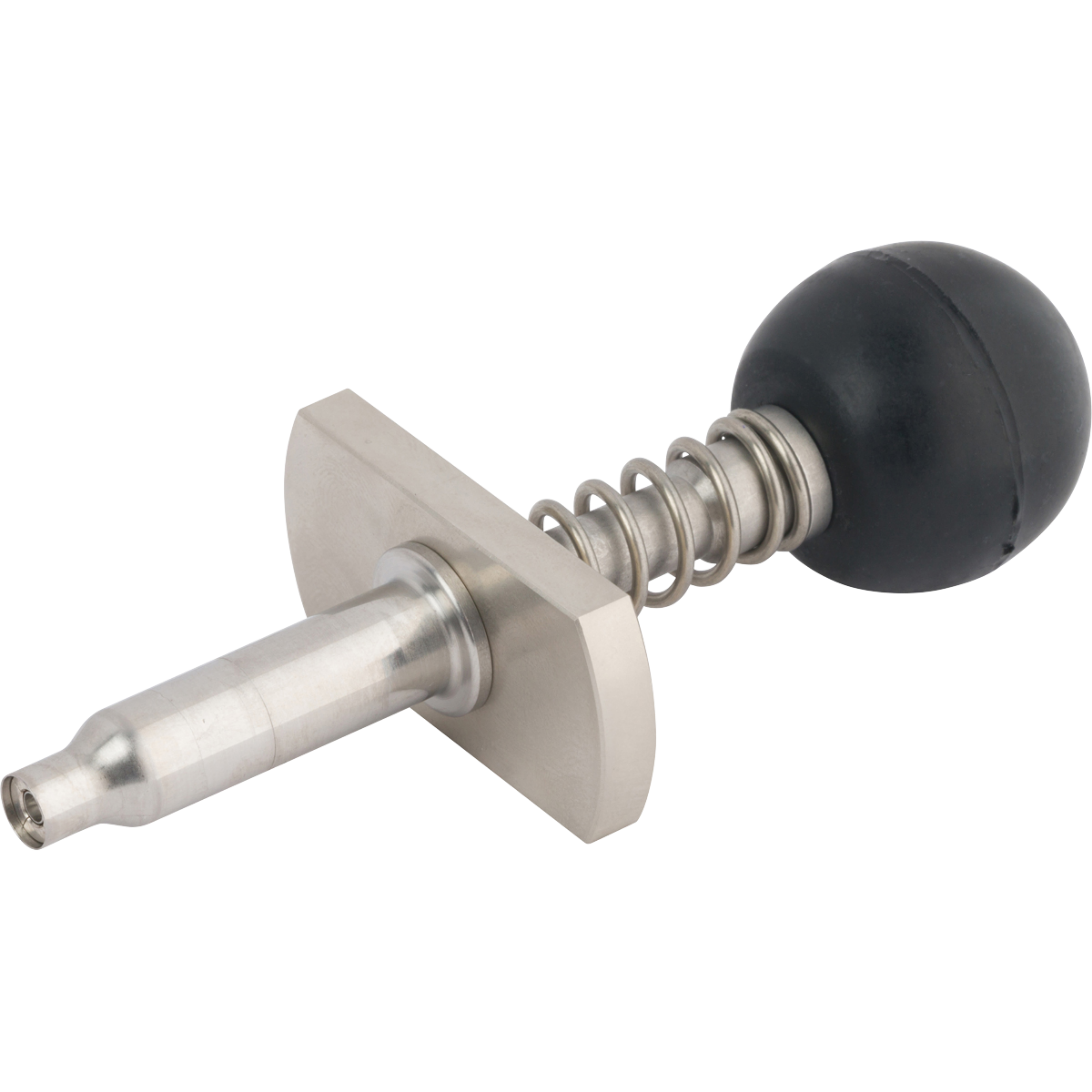

500-12-000
SMP Tool 500-12-000

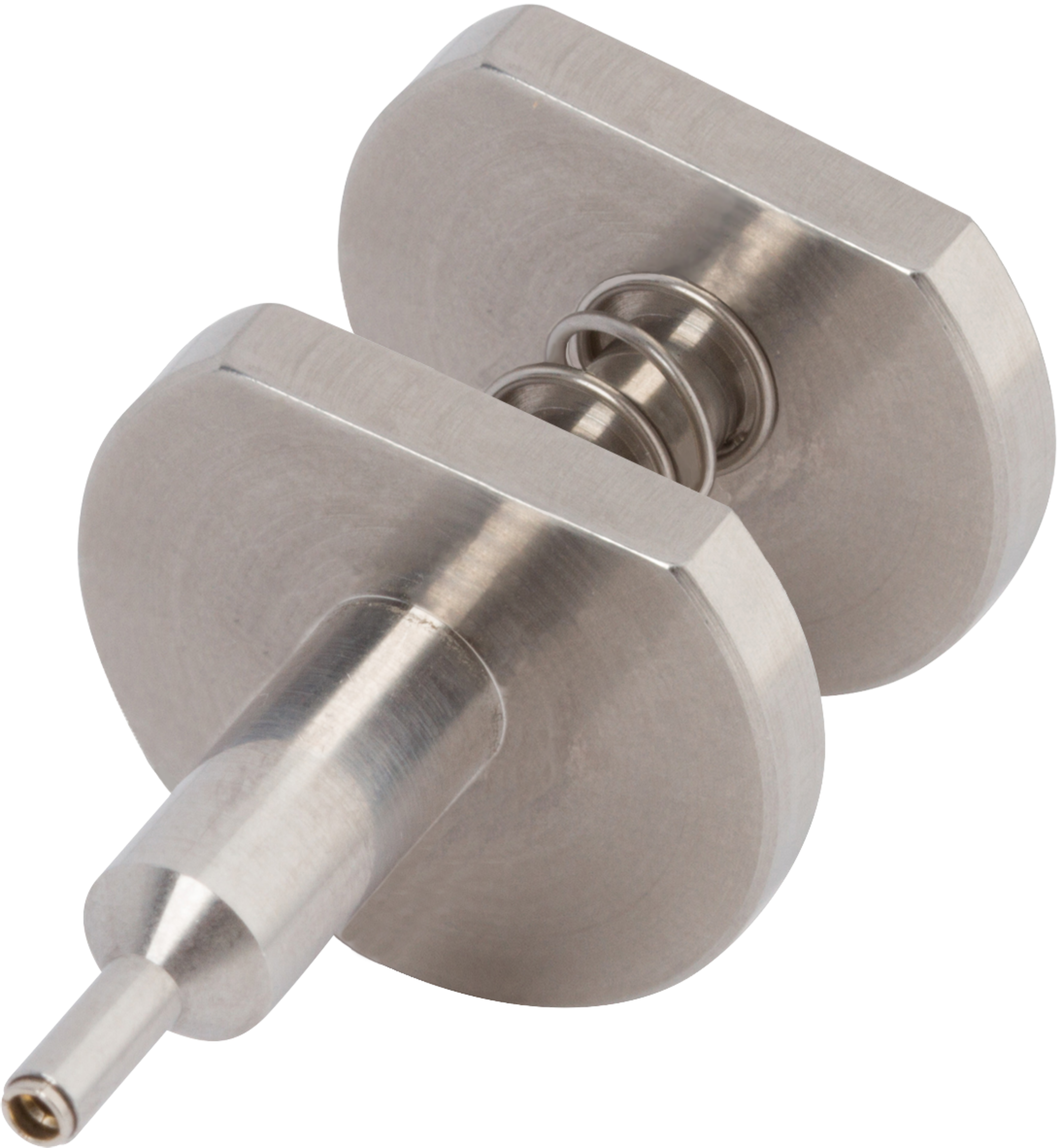

500-32-007
SMPM Tool 500-32-007

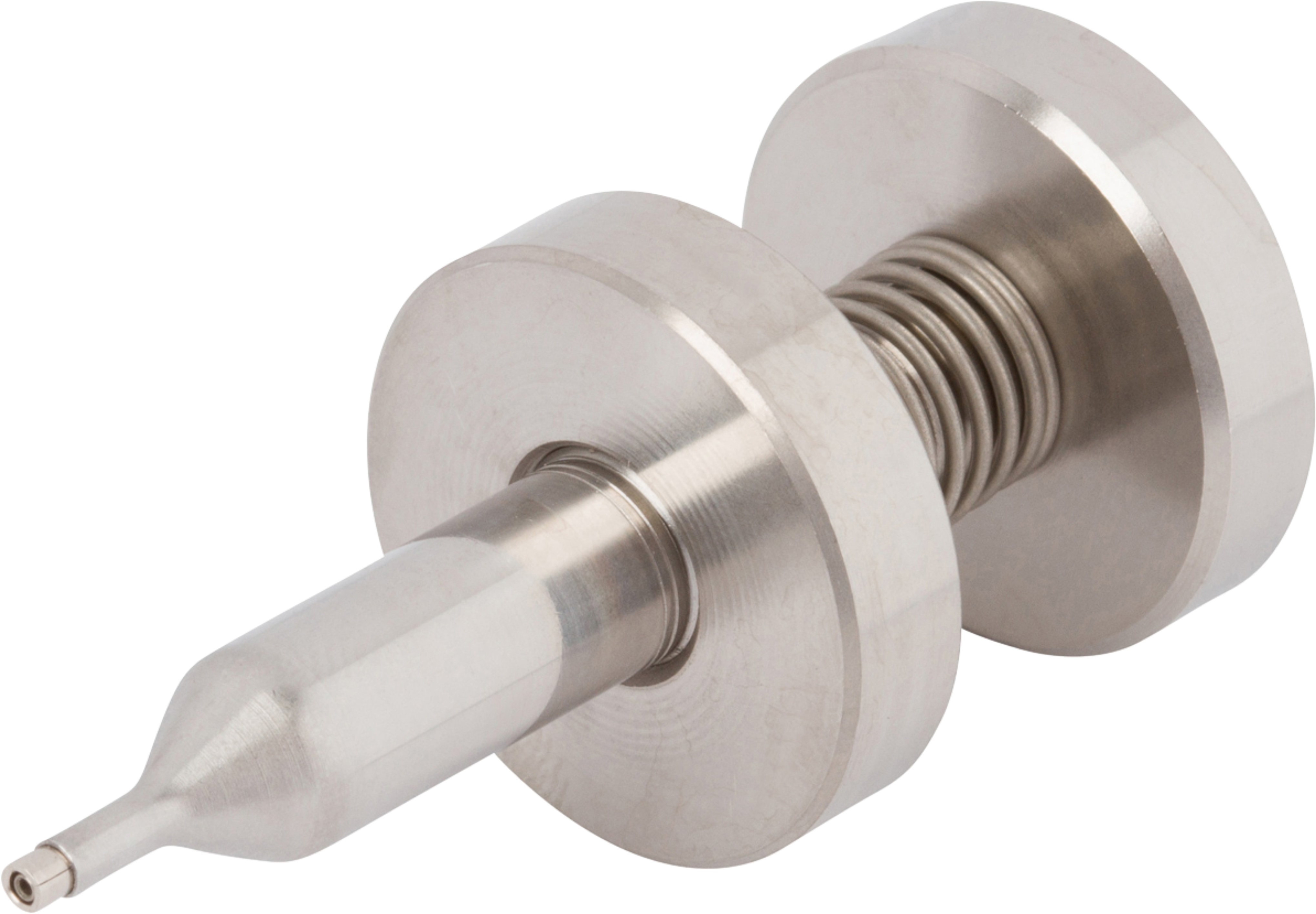

500-38-004
