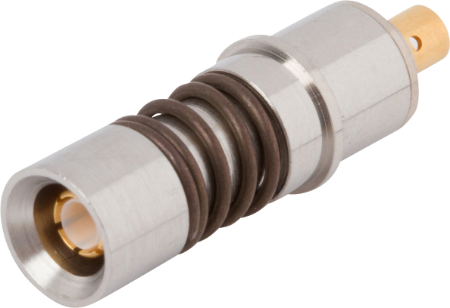

Name: BMZ Socket D38999 Contact (Size 8) for .140 Cable
SKU: SF9811-6001
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
RF Series	BMZ
Gender	Socket
Orientation (Body)	Straight
Coupling	Push-on
Mounting Type	D38999 Series I, III and IV
Style	Size 8
Finish	Passivated
Cable Type	0.140 Flexible Coax
Electrical
Frequency	40 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB
Dielectric withstanding Voltage	1000 VRMS
Mechanical
Insertion Force	0.75 lbs
Mating Cycles	500
Withdrawal Force	0.13 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU	Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Not Yet Reviewed Please contact our compliance team for more information.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:21:35 AM

BMZ Socket D38999 Contact (Size 8) for .140 Cable
P/N: SF9811-6001

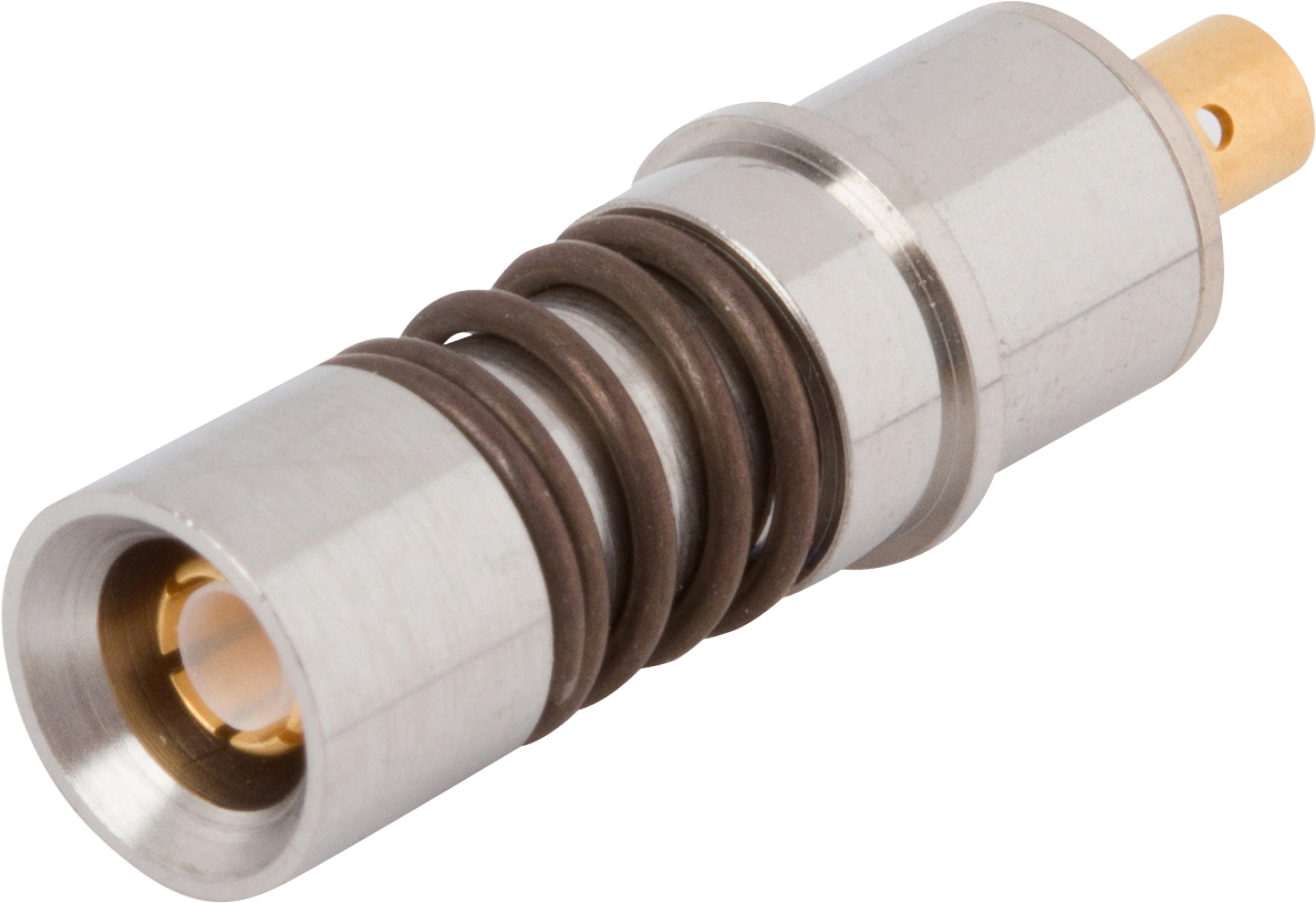

BMZ Socket D38999 Contact (Size 8) for RG-174 Cable
