Bullet Alignment Tool

Custom Alignment Tools for Board-to-Board Solutions

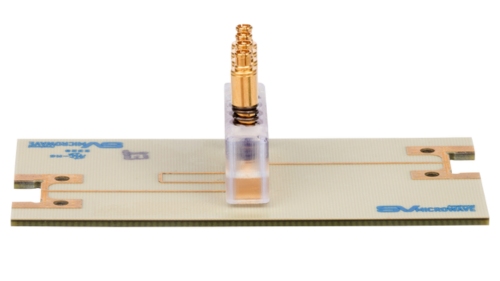

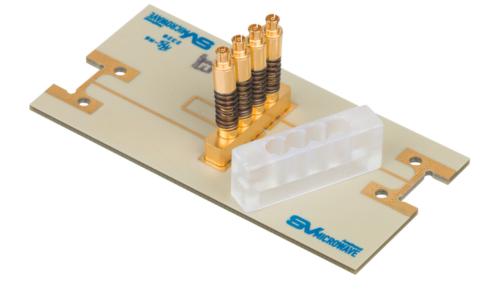

SV Microwave has the ability to create custom alignment tools that easily solve for radial alignment in multiport board-to-board solutions. This tool can be configured for any number of ports and a variety of RF interfaces like: SMP, SMPM and SMPS and more. Simply mate your desired bullet(s) and multiport together, then place our custom tool over the top to ensure all are perfectly aligned.

Features and Benefits

  • Easily align bullets in a gang-mating application
  • Customizable for any number of ports
  • Reduces radial misalignment
  • Can be customized for SMP, SMPM and SMPS board-to-board mating solutions

Applications

  • Board-to-Board Solutions
  • Gang Mating
