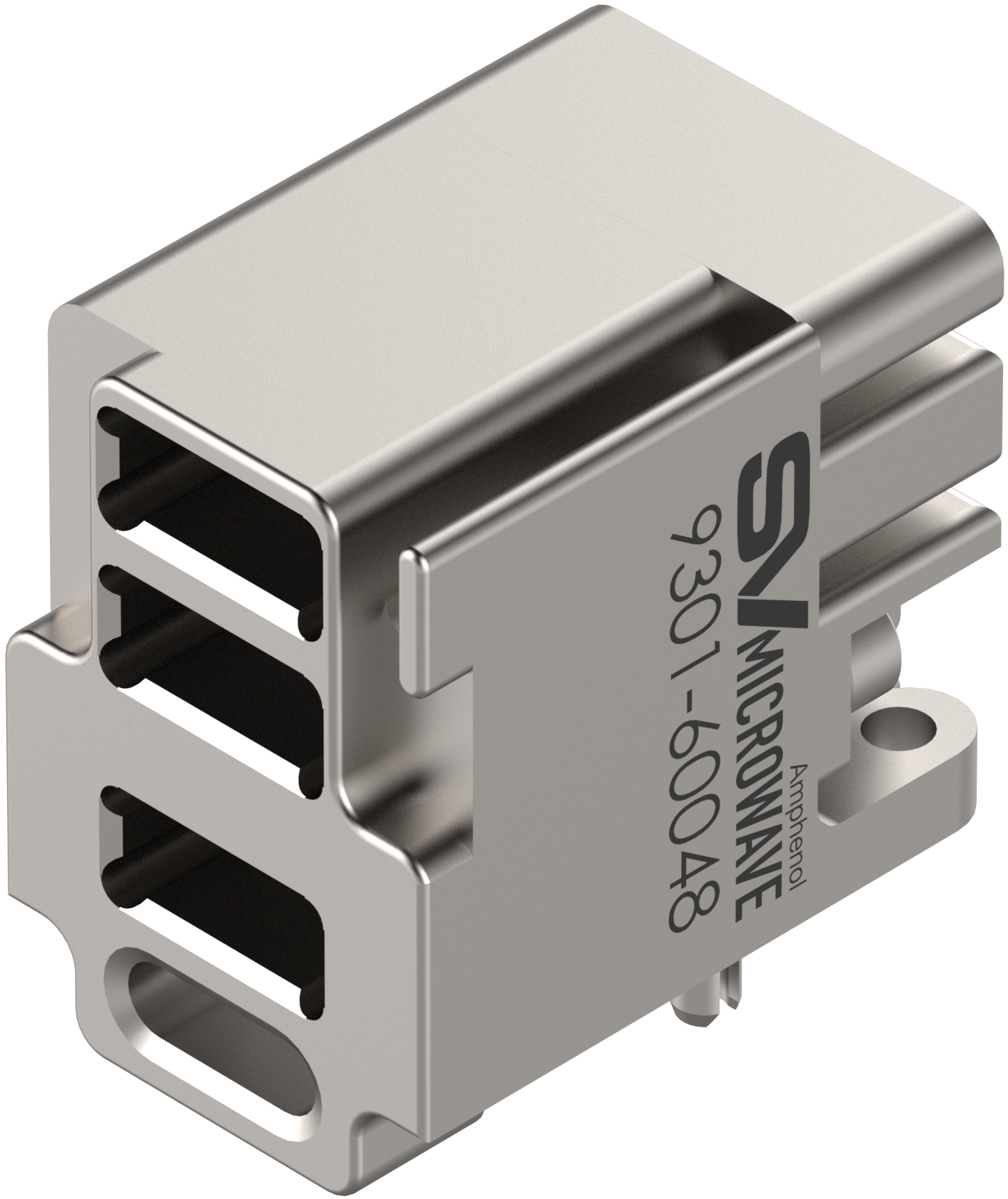

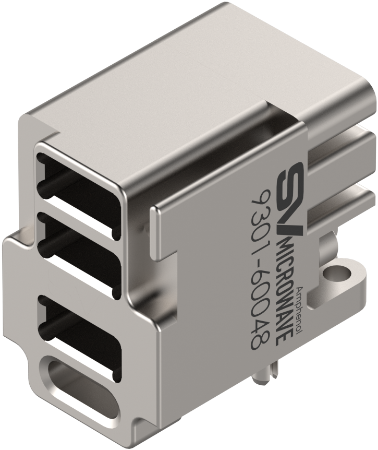

MT Fiber 3 Port Plug-In Module

Name: MT Fiber 3 Port Plug-In Module
SKU: 9301-60048
Availability: InStock

P/N: 9301-60048

Downloads

Products specifications

Attribute name	Attribute value
Family	VITA 66, SOSA Aligned
Mounting Type	PCB Edge Launch
Coupling	Push-on
Orientation (Body)	Straight
Number of Ports	Multiple
Finish	Passivated
Electrical
Impedance	50 ohms
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mechanical
Mating Cycles	500
Insertion Force	1.2 lbs (per contact)
Withdrawal Force	1.0 lbs
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Your name *

Your email *

Enquiry *

Need a Complete RF/Fiber Solution?

To populate SV Microwave's 3 Port MT Fiber Module with a fiber cable assembly, please contact Amphenol Fiber Systems International.
