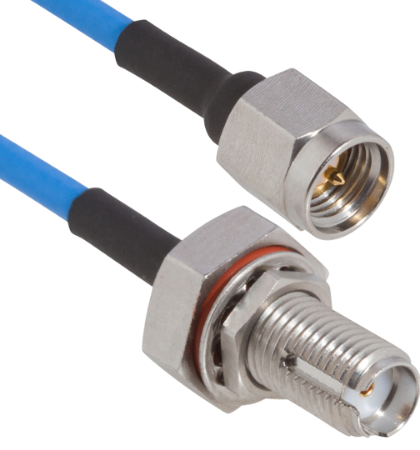

SMA Female Keyed (90°) Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
P/N: 7029-3411

Name: SMA Female Keyed (90°) Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
SKU: 7029-3411
Availability: OutOfStock

Loading...

Downloads

Products specifications

Attribute name	Attribute value
RF Series	SMA
Coupling	Keyed
Orientation (Body)	Straight
Keyed Subtype	90-90
Gender	Jack (Female)
Mounting Type	Panel
Body Style	Jamnut/Bulkhead
Termination Style	Solder
RF Series 2	SMA
Gender 2	Plug (Male)
Cable Type	0.085 Flexible Coax
Orientation 2 (Body)	Straight
Cable Length	6"
Electrical
Frequency	18 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mechanical
Mating Cycles	500
Mating Torque	7 - 10 in - lbs
Intermateability	2.92mm
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Product tags

EU RoHS Directive 2011/65/EU	Not Compliant These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.
EU REACH Regulation (EC) No. 1907/2006	SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.
CE / UKCA	Compliant This products meets the requirements for CE and UKCA.
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact compliance@svmicro.com for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:11:09 AM

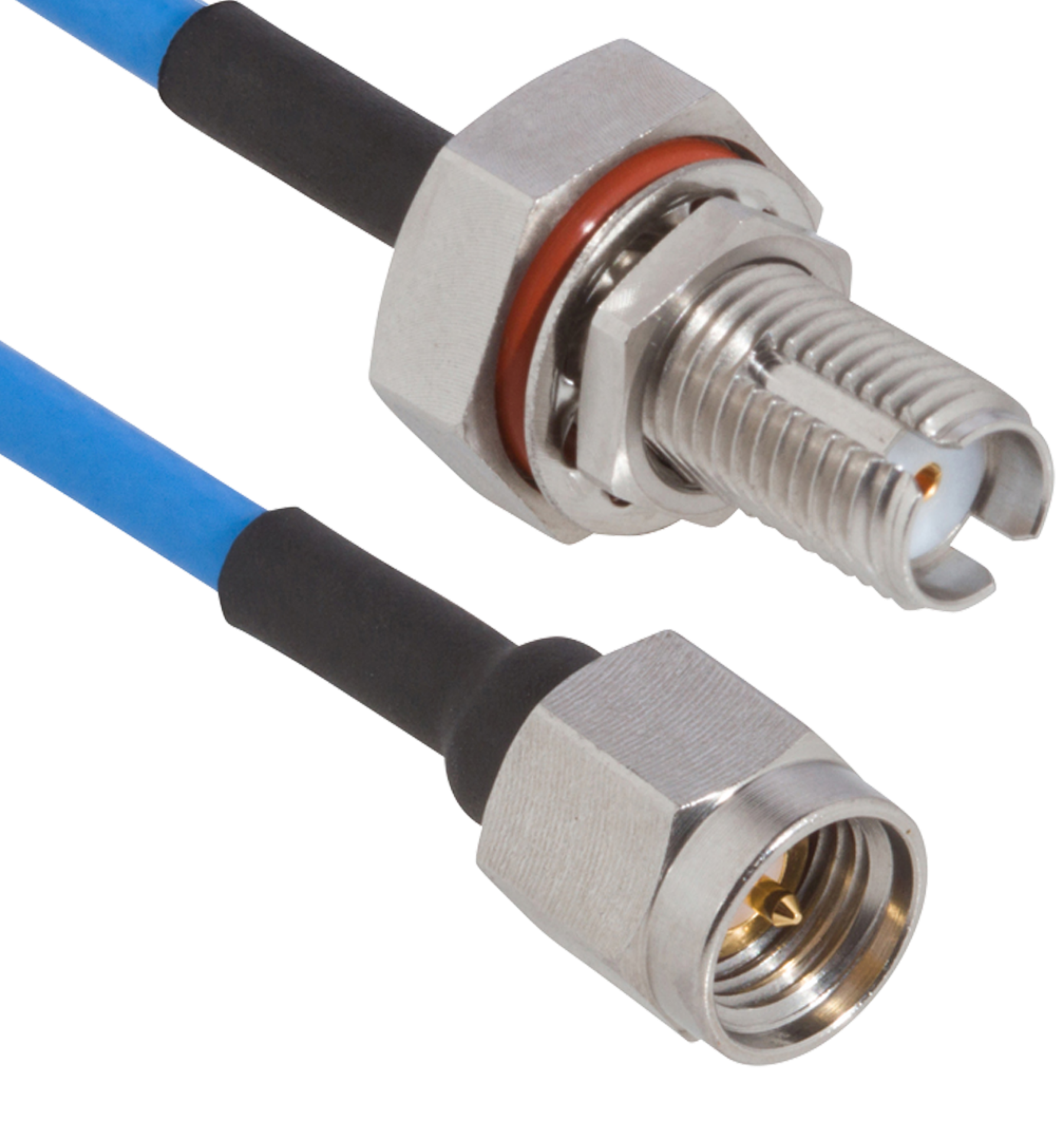

SMA Female Keyed (180°) Bulkhead to SMA Male 6" Cable Assembly for .085 Cable
