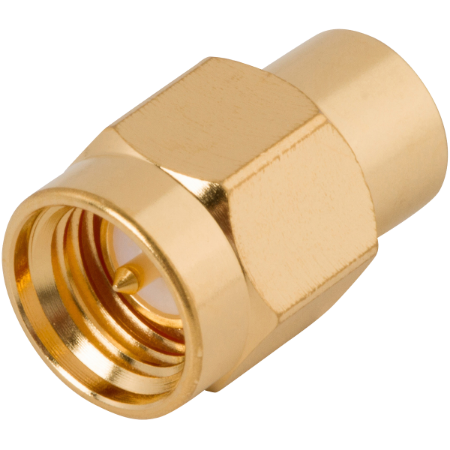

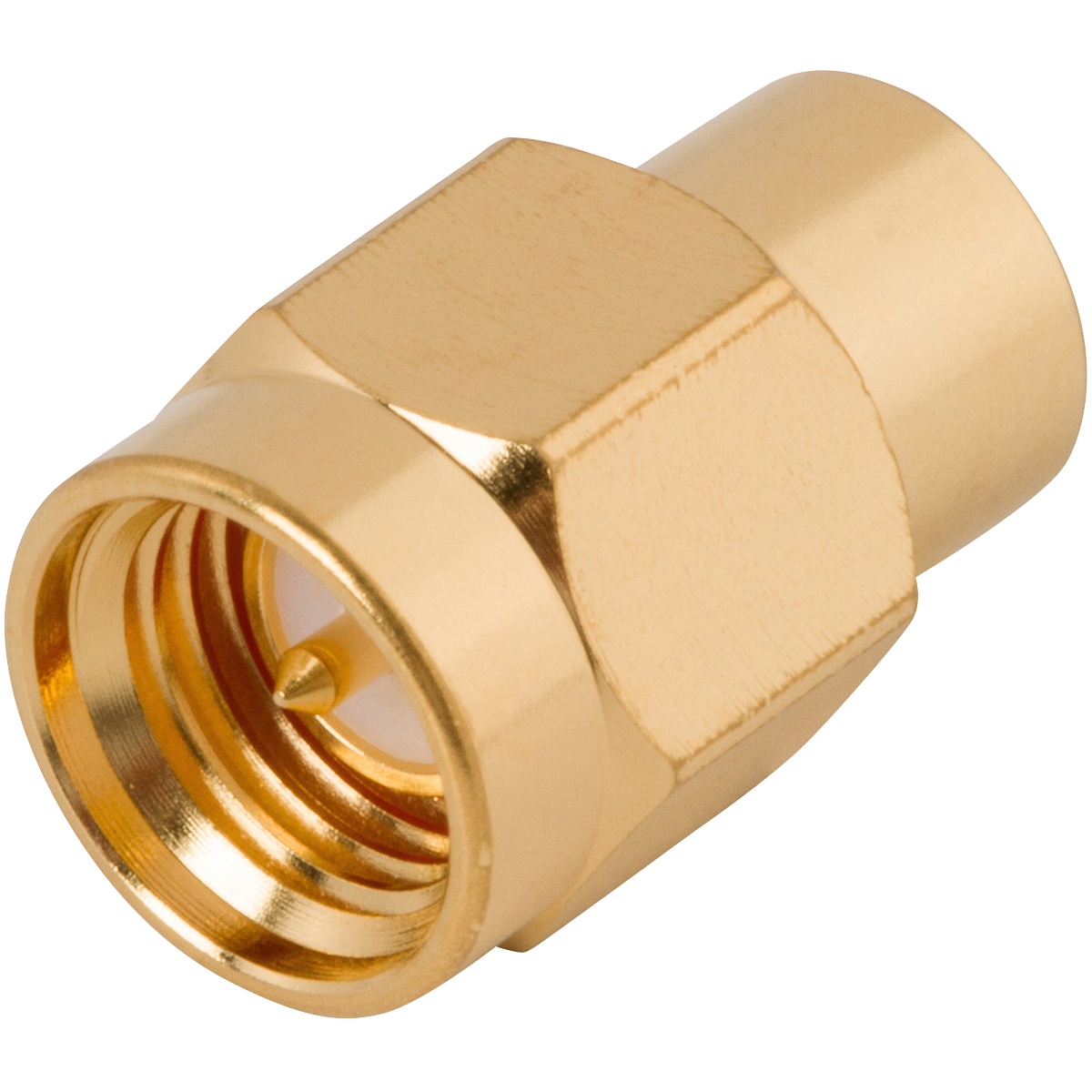

RF Series
|
SMA |
|
Orientation (Body)
|
Straight |
|
Gender
|
Plug (Male) |
|
Number of Ports
|
Single |
|
Coupling
|
Threaded |
|
Frequency
|
18 GHz |
|
Impedance
|
50 ohms |
|
Dielectric withstanding Voltage
|
1000 VRMS |
|
Shielding Effectiveness
|
≥ -90 dB |
|
Mating Torque
|
7 - 10 in - lbs |
|
Mating Cycles
|
500 |
|
Intermateability
|
2.92mm |
|
Temperature Rating
|
-65°C to +165°C |
|
Shock
|
MIL-STD-202, Method 213, Condition I |
|
Vibration
|
MIL-STD-202, Method 204, Condition D |
|
Corrosion (salt spray)
|
MIL-STD-202, Method 101, Condition B |
|
Barometric Pressure (Altitude)
|
MIL-STD-202, Method 105, Condition C, 70k Ft. |
|
Moisture Resistance
|
MIL-STD-202, Method 106, Less Step 7B |
|
Thermal Shock
|
MIL-STD-202, Method 107, Condition B |
