Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMA |
| Gender | Plug (Male) |
| Coupling | Threaded |
| RF Series 2 | SMA |
| Gender 2 | Jack (Female) |
| Electrical | |
| Frequency | 12.4 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 1000 VRMS |
| Shielding Effectiveness | ≥ -90 dB |
| Mechanical | |
| Mating Torque | 7 - 10 in - lbs |
| Mating Cycles | 500 |
| Intermateability | 2.92mm |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
Customers Also Viewed
M3933/16-XXN
SMA Attenuator M3933/16-01N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N M3933/16-01N M3933/16-02N M3933/16-03N M3933/16-04N M3933/16-05N M3933/16-06N M3933/16-07N M3933/16-08N M3933/16-09N M3933/16-10N M3933/16-11N M3933/16-16N M3933/16-17N M3933/16-18N M3933/16-19N M3933/16-20N M3933/16-21N M3933/16-22N M3933/16-23N M3933/16-24N M3933/16-25N M3933/16-26N M3933/16-27N M3933/16-28N M3933/16-30N M3933/16-31N M3933/16-32N M3933/16-34N M3933/16-36N M3933/16-38N M3933/16-40N M3933/16-42N M3933/16-44N

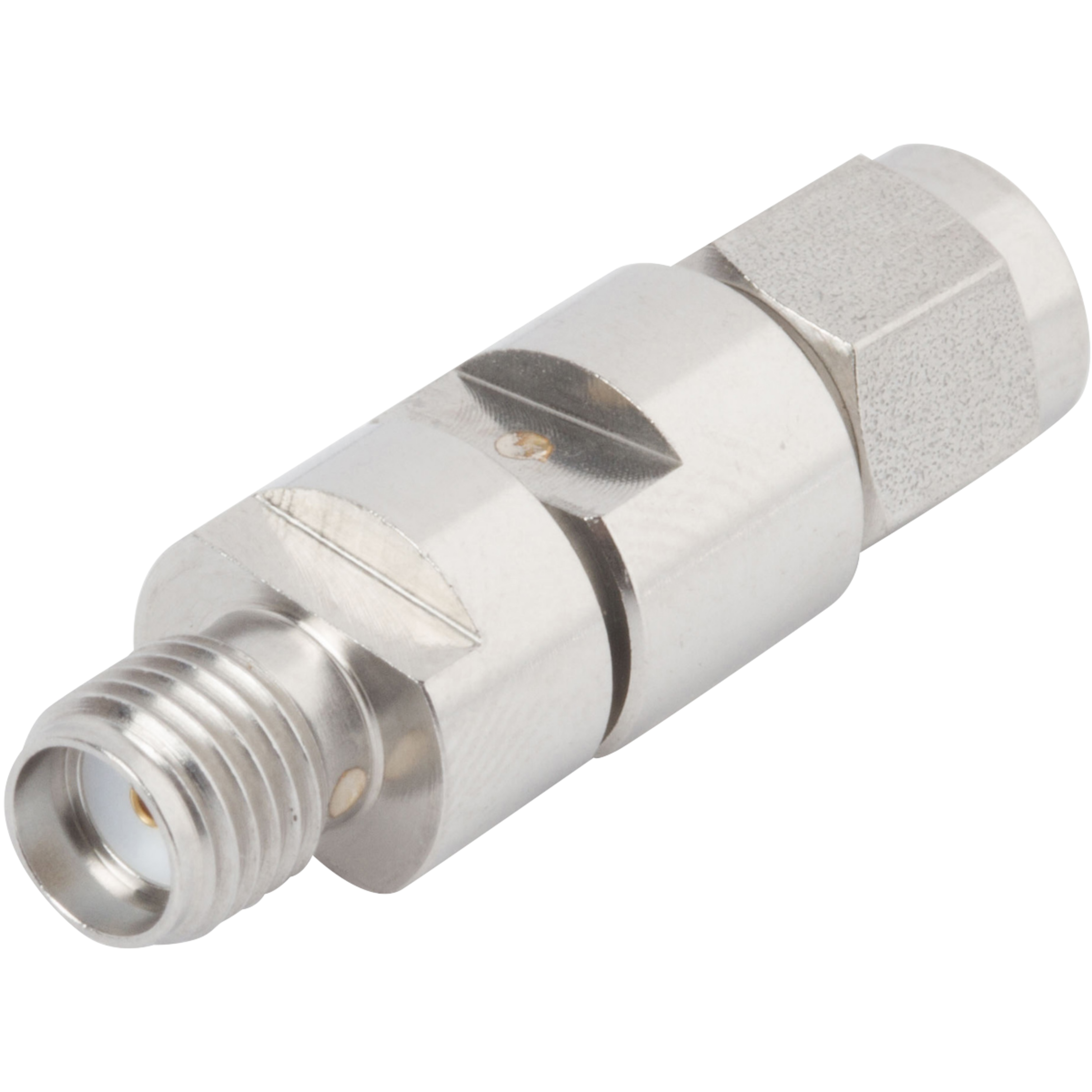

M3933/16-XXS
