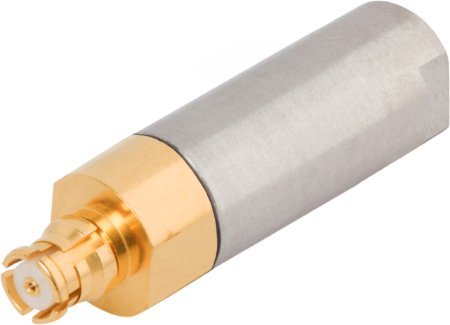

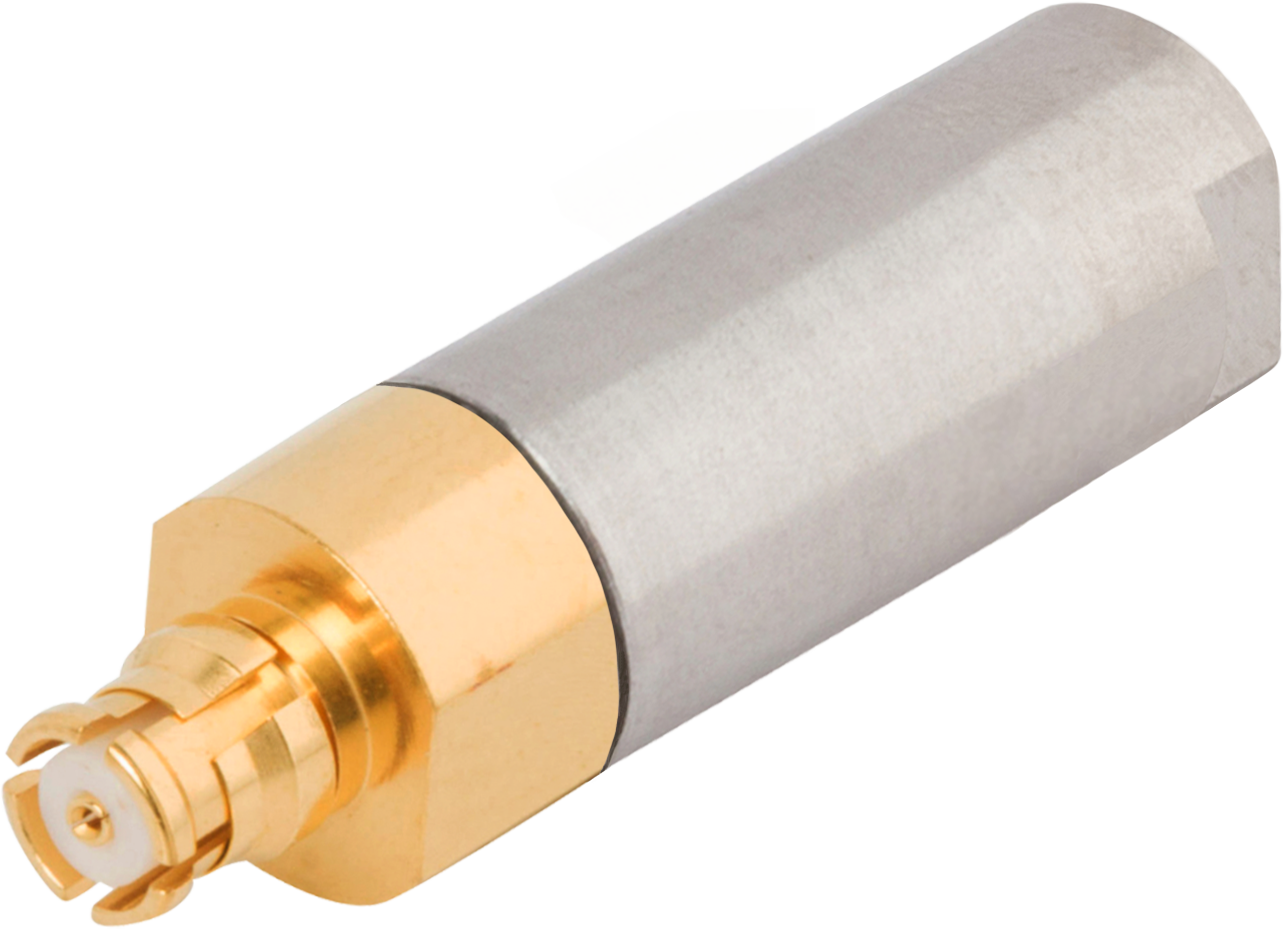

SMP Female to Male Attenuator, 40 GHz

P/N: 0912-6312-XXX
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Coupling Push-on
Finish Passivated
RF Series 2 SMP
Gender 2 Plug (Male)
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS
Mechanical
Mating Cycles 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Intermateability SMA, SMA
Environmental
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Coupling Push-on
Finish Passivated
RF Series 2 SMP
Gender 2 Plug (Male)
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB, ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS, 750 VRMS
Mechanical
Mating Cycles 500, 500
Mating Torque 7 - 10 in - lbs, 7 - 10 in - lbs
Intermateability SMA, SMA
Environmental
Vibration MIL-STD-202, Method 204, Condition D, MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C, -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B, MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I, MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B, MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft., MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B, MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
2.92mm Female to Male Attenuator, 32 GHz (Nonscreened), M3933/30-XXN
Part #   M3933/30-XXN

2.92mm Female to Male Attenuator, 32 GHz (Nonscreened)

Available Inventory: 0
2.92mm Attenuator M3933/30-02N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N
//

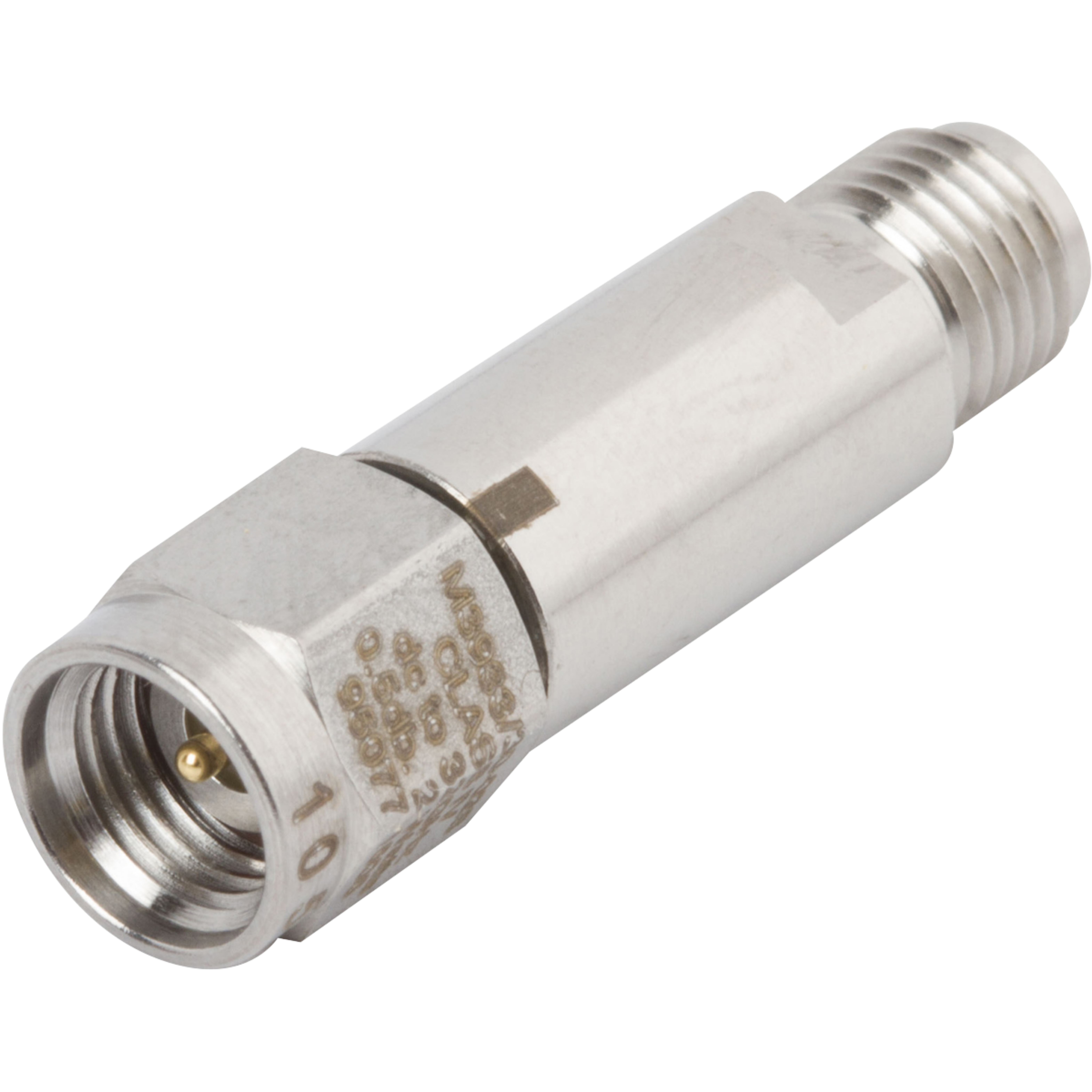

2.92mm Female to Male Attenuator, 32 GHz (Screened), M3933/30-XXS
Part #   M3933/30-XXS

2.92mm Female to Male Attenuator, 32 GHz (Screened)

Available Inventory: 0
2.92mm Attenuator M3933/30-02S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S
//

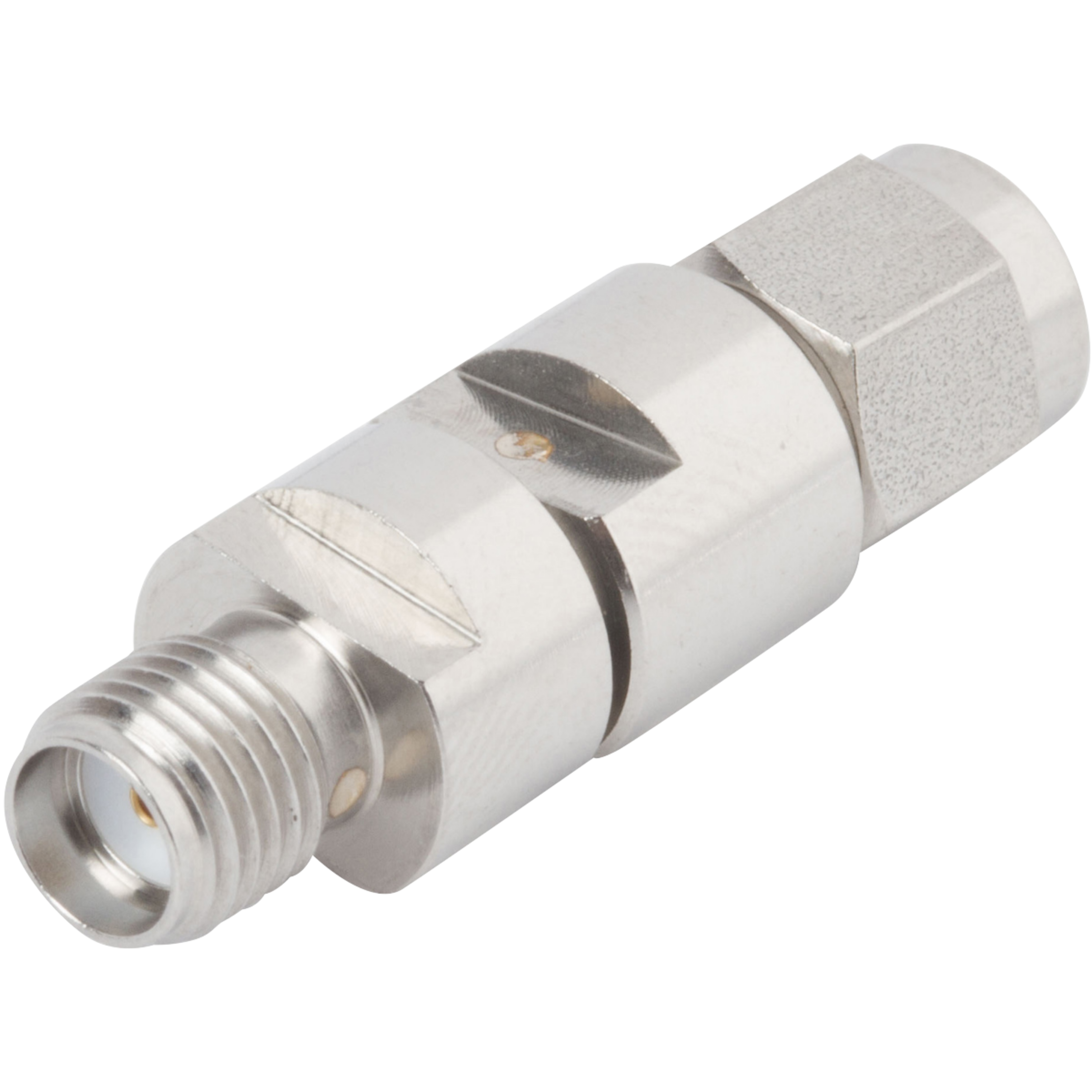

SMA Female to Male Attenuator, 18 GHz (Nonscreened), M3933/16-XXN
