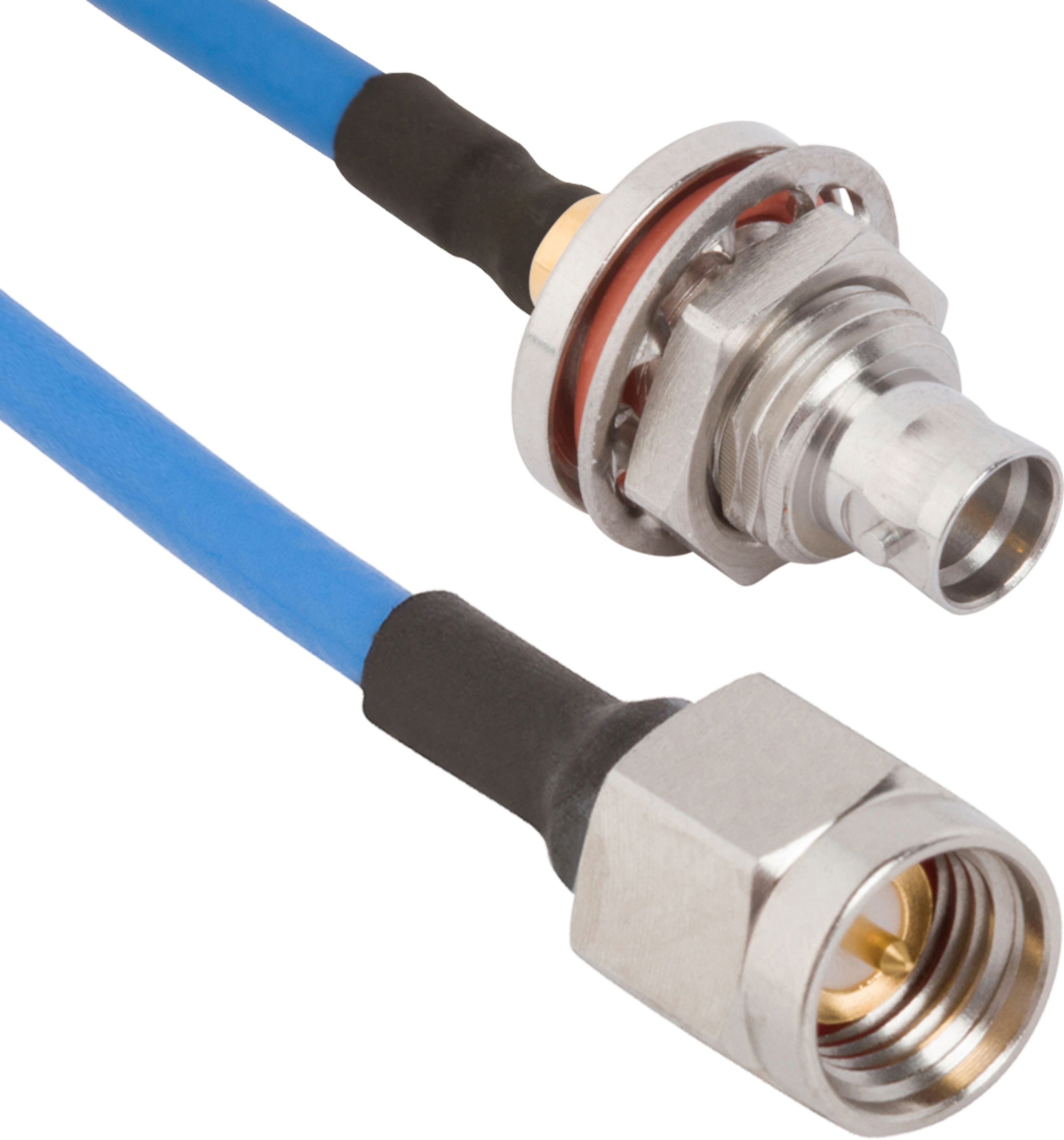

PreviousSMP Male QB Bulkhead to SM...
NextSMPM (Size 12) D38999 Pin C...
SMP Male QB Bulkhead to SMA Male 6" Cable Asssembly for .085 Cable, 7012-1086

SMP Male QB Bulkhead to SMA Male 6" Cable Assembly for .085 Cable

P/N: 7012-1086
Downloads
Products specifications
Attribute name Attribute value
Family QuarterBack
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Body Style Jamnut/Bulkhead
Mounting Type Panel
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - SB 1000
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

EU RoHS Directive 2011/65/EU Not Compliant

These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance.
EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:06:48 AM
*
*
*
