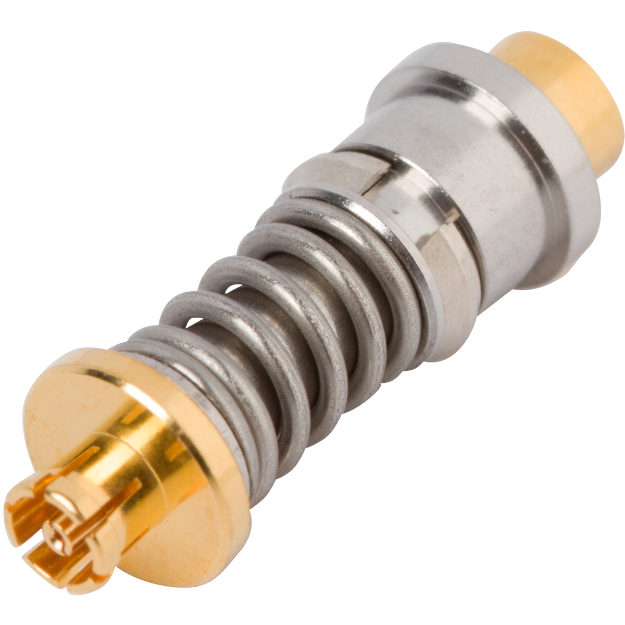

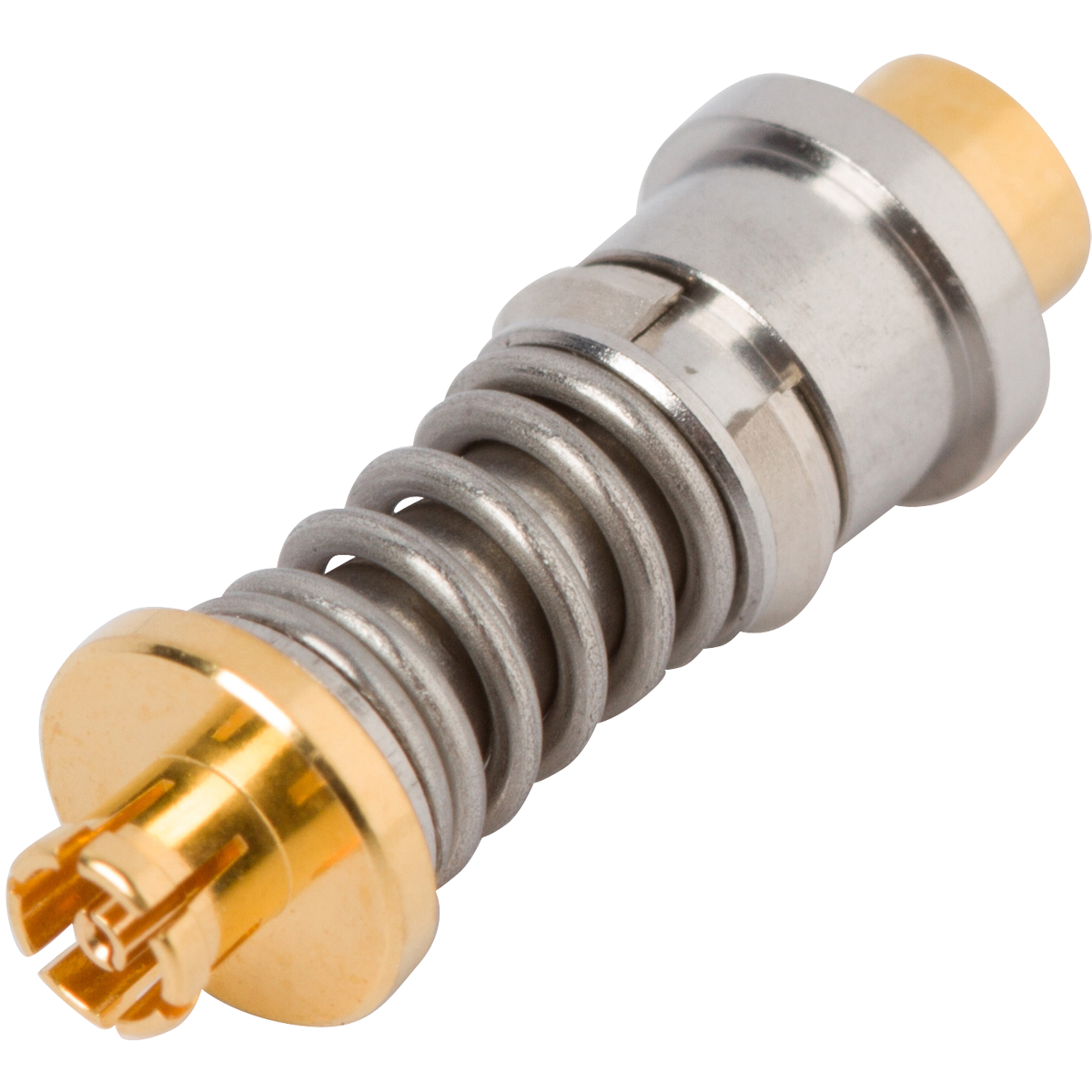

SMPM Female VITA 67.3 Backplane Contact for .086 Cable

P/N: 3221-40066
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Jack (Female)
Family VITA 67, SOSA Aligned
RF Series VITA SMPM
Mounting Type Snap-in
Coupling Push-on
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax

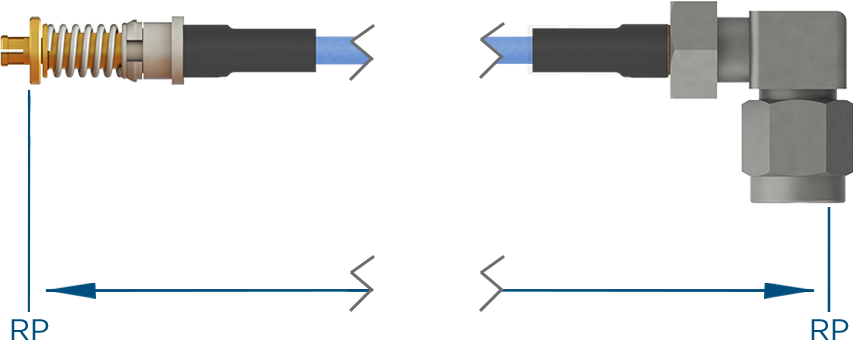

Cable Builder Attributes
Cable Builder Left Image 25855
Cable Builder Right Image 25856
Mating Connector SF9321-60059, SF9321-60086
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
*
*
*
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
Gender Jack (Female)
Family VITA 67, SOSA Aligned
RF Series VITA SMPM
Mounting Type Snap-in
Coupling Push-on
Termination Style Solder
Number of Ports Single
Finish Gold
Cable Type 0.085 Flexible Coax, 0.087-LL Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25855
Cable Builder Right Image 25856
Mating Connector SF9321-60059, SF9321-60086
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Related products
SMPM VITA 67.3 10 Port Backplane Module C, SF9321-60059
Part #   SF9321-60059

SMPM VITA 67.3 10 Port Backplane Module C

Available Inventory: 143
VITA Connectors SF9321-60059
//
SMPM VITA 67.3 14 Port Backplane Module, SF9321-60086
Part #   SF9321-60086

SMPM VITA 67.3 14 Port Backplane Module

Available Inventory: 430
VITA Connectors SF9321-60086
//
SMPM VITA 67.3 10 Port Plug-In Module C, 9311-60220
Part #   9311-60220

SMPM VITA 67.3 10 Port Plug-In Module C

Available Inventory: 170
VITA Connectors 9311-60220
//
SMPM VITA 67.3 14 Port Plug-In Module C, 9311-60221
Part #   9311-60221

SMPM VITA 67.3 14 Port Plug-In Module C

Available Inventory: 226
VITA Connectors 9311-60221
//
SMPM Female VITA 67.3 Contact Removal Tool, 500-32-015
Part #   500-32-015

SMPM Female VITA 67.3 Contact Removal Tool

Available Inventory: 103
VITA Tool 500-32-015
//
SMPM Male to SMPM VITA 67.3 Male Plug-In Adapter, 1132-6116
Part #   1132-6116

SMPM Male to SMPM VITA 67.3 Male Plug-In Adapter

Available Inventory: 1786
SMPM Adapters 1132-6116
//
Customers Also Viewed

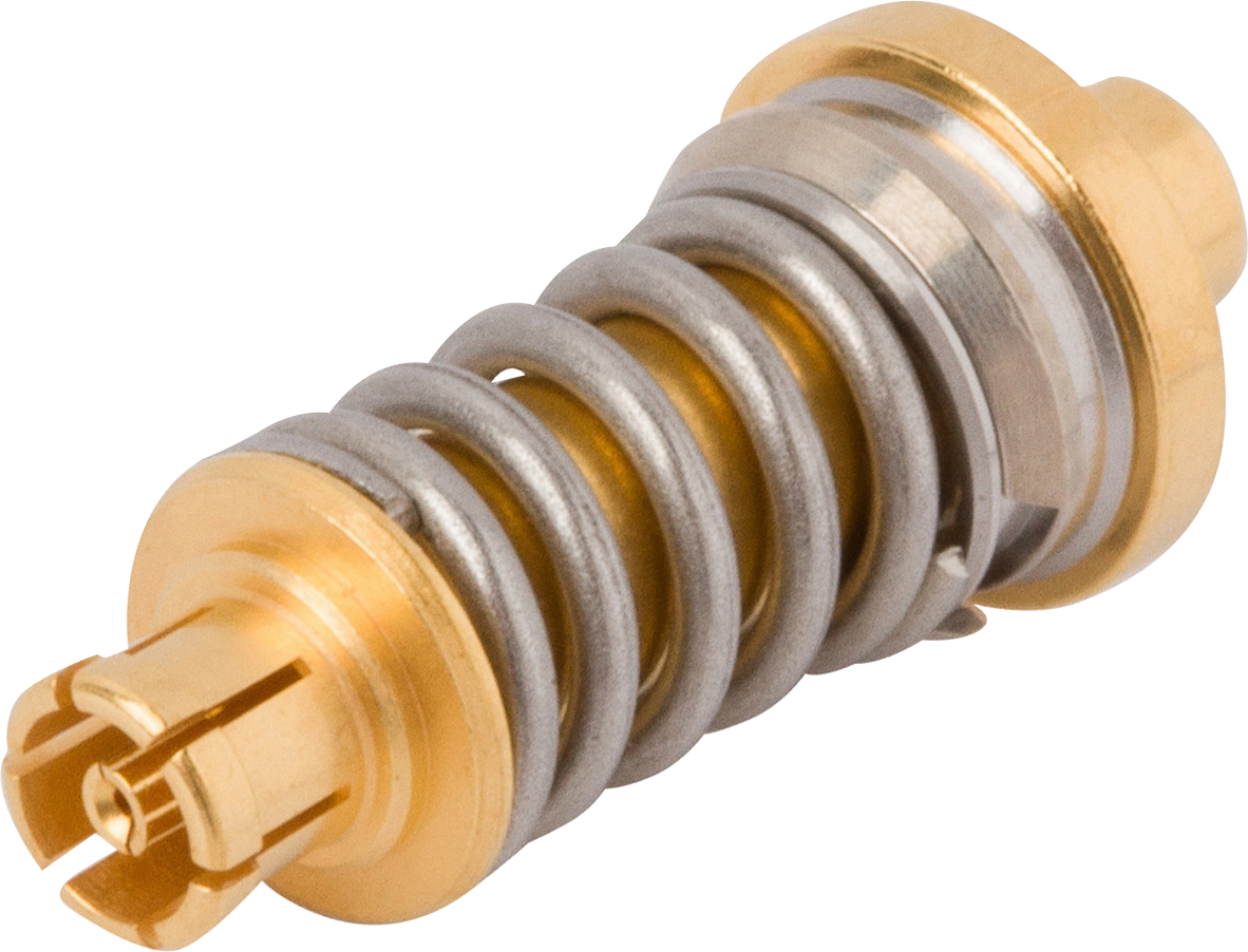

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable, 3221-40019
Part #   3221-40019

SMPM Female VITA 67.1/2 Plug-in Contact for .047 Cable

Available Inventory: 995
VITA Connectors 3221-40019
//
SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable, 3221-40022
Part #   3221-40022

SMPM Female VITA 67.1/2 Plug-in Contact for .086 Cable

Available Inventory: 911
VITA Connectors 3221-40022
//

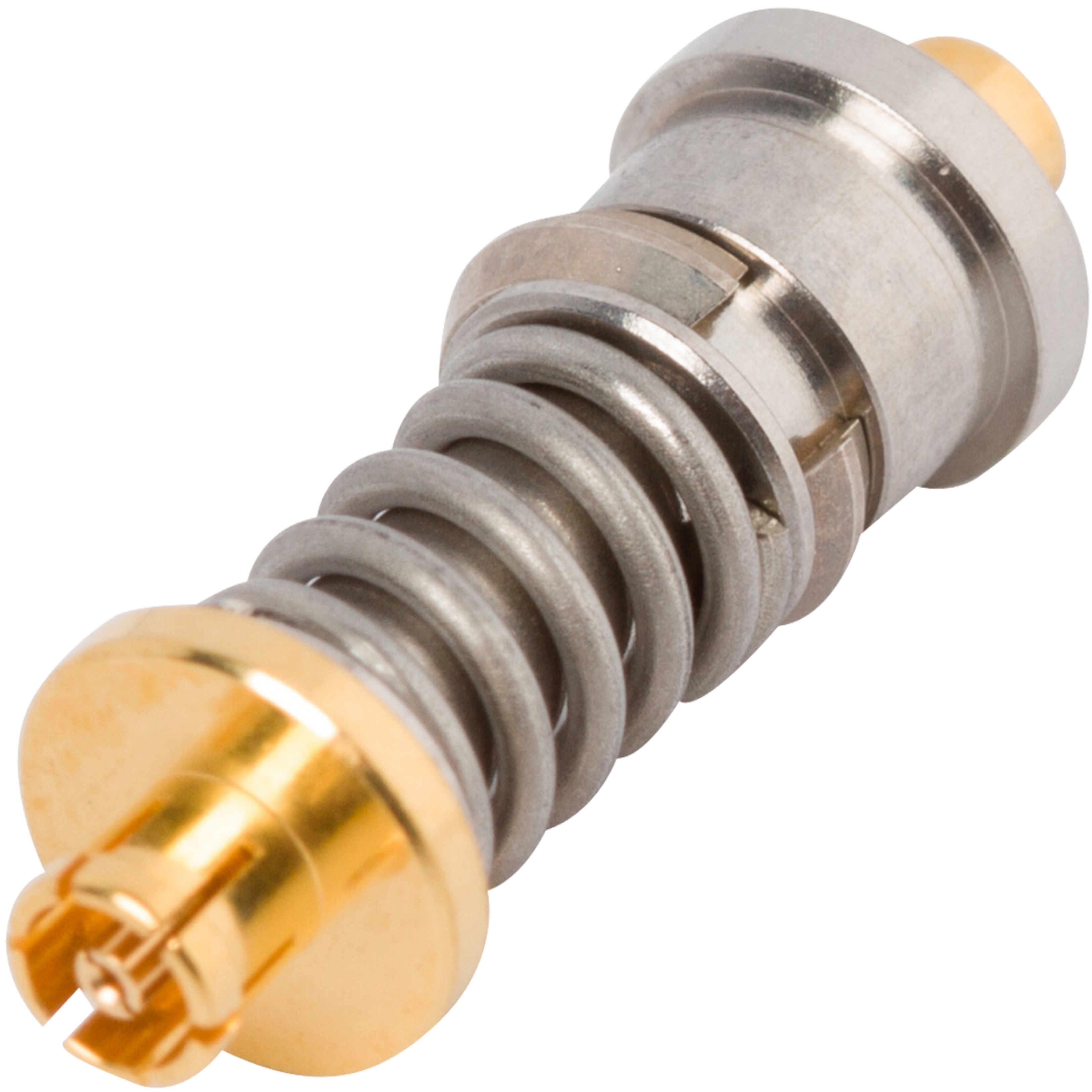

SMPM Female VITA 67.3 Backplane Contact for .047 Cable, 3221-40071
