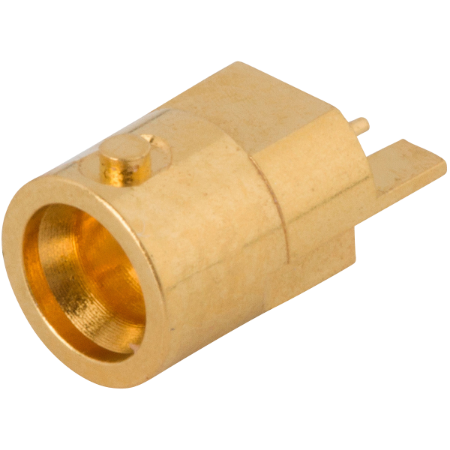

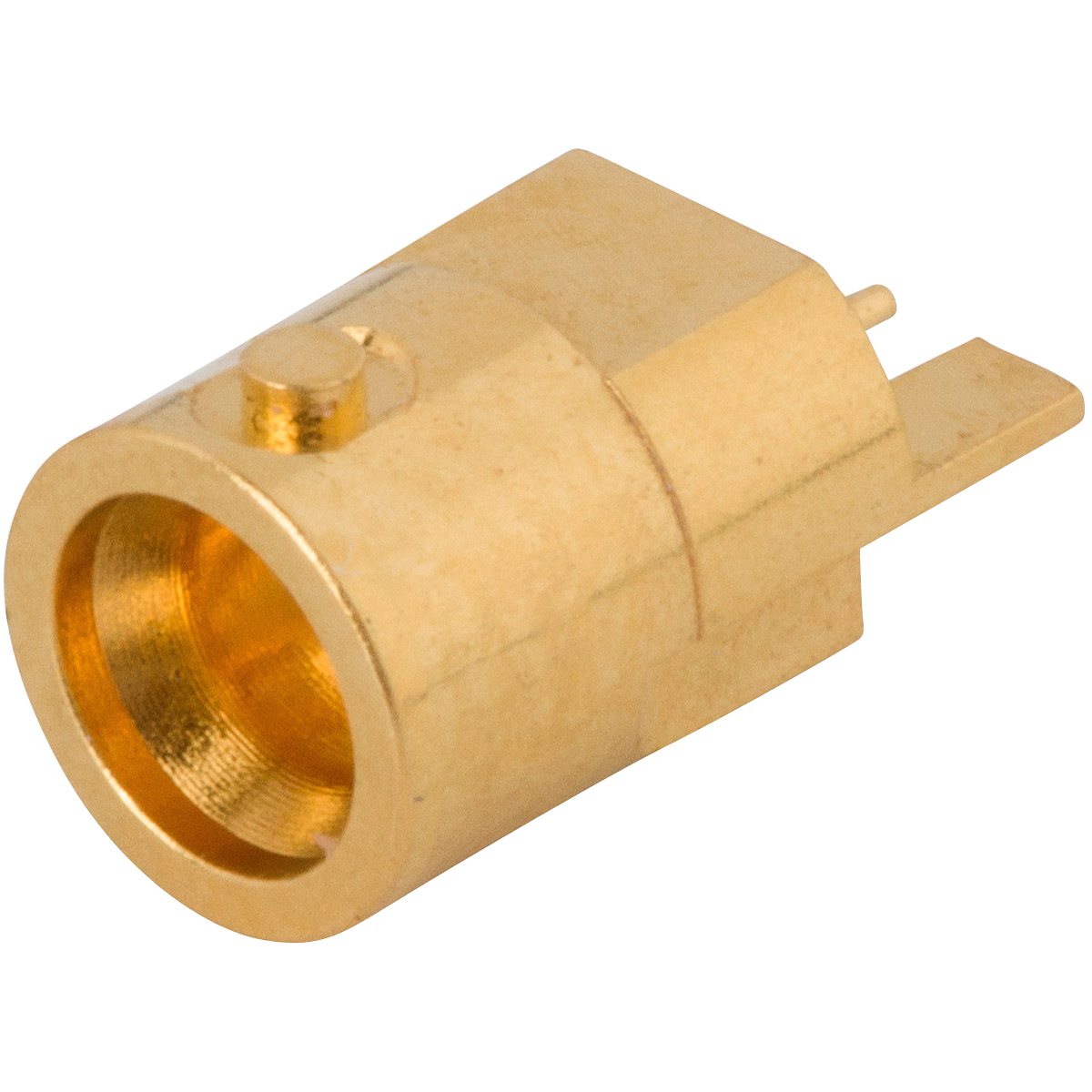

Name: SMPM Male PCB QB Edge Launch Connector, SB 3211-60118
SKU: 3211-60118
Availability: OutOfStock

Products specifications

Attribute name	Attribute value
Family	QuarterBack
RF Series	SMPM
Gender	Plug (Male)
Orientation (Body)	Straight
Coupling	Keyed
Keyed Subtype	180-180
Detent	Smooth Bore
Mounting Type	PCB Edge Launch
Termination Style	Solder
Finish	Gold
Number of Ports	Single
Electrical
Frequency	65 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mechanical
Mating Cycles - SB	500
Mating Cycles - FD	100
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Axial Misalignment	.010” Max
Withdrawal Force - FD	6.5 lbs
Radial Misalignment	3° Max
Environmental
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Temperature Rating	-65°C to +165°C
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
