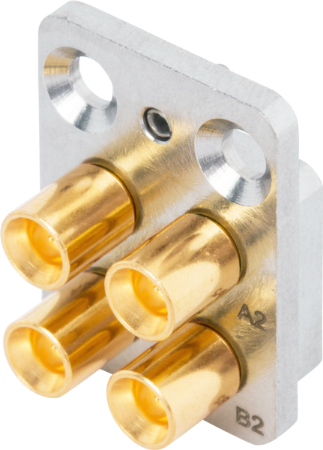

SMPM VITA 67.1 Backplane Module
P/N: SF1132-6037

Loading...
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Mounting Type Snap-in
Finish Passivated
Coupling Push-on
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series VITA SMPM
Orientation (Body) Straight
Mounting Type Snap-in
Finish Passivated
Coupling Push-on
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF1132-6036

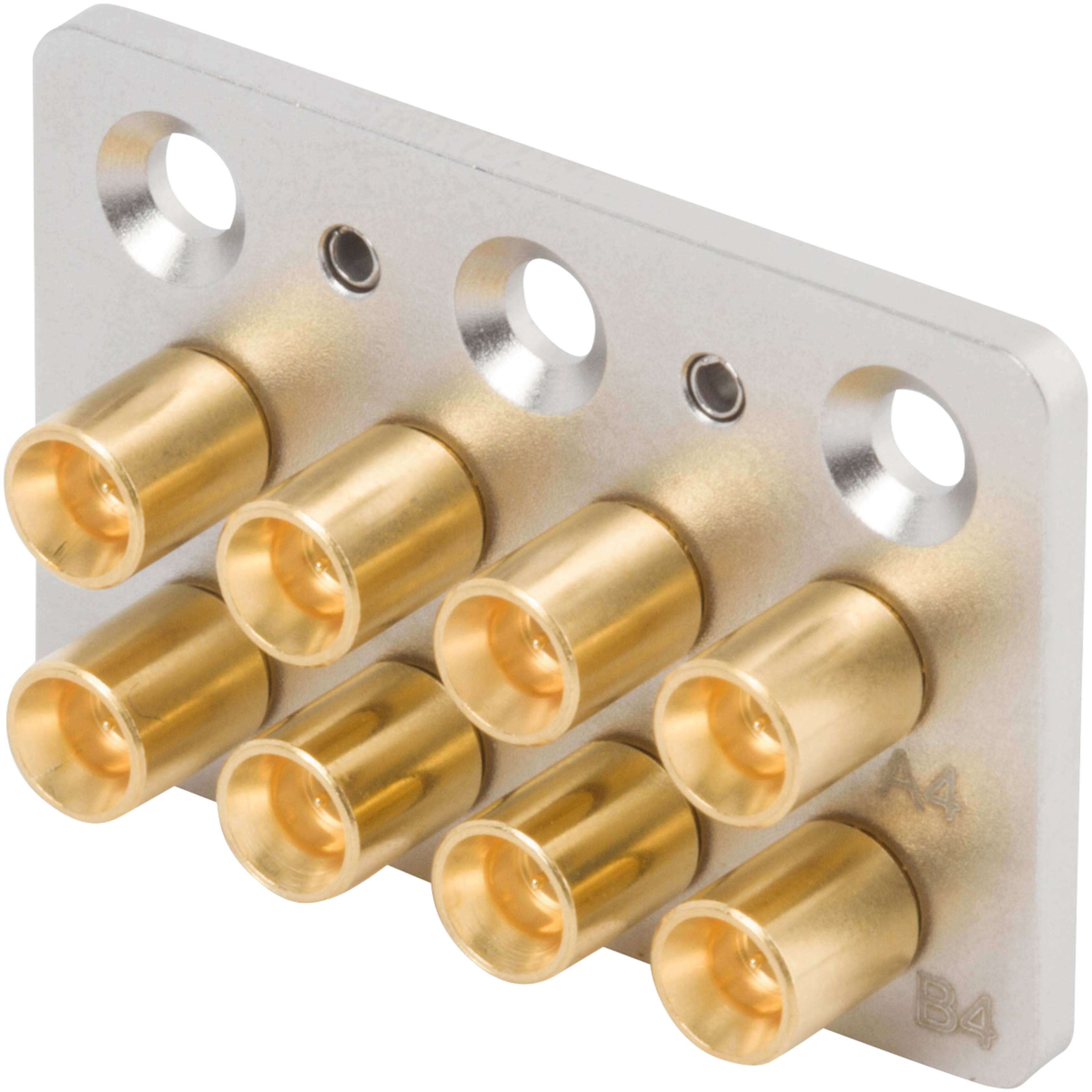

SMPM VITA 67.2 Backplane Module

Available Inventory: 20
SF1132-6036
VITA Connectors SF1132-6036
Datasheet
Part #   SF9321-60013

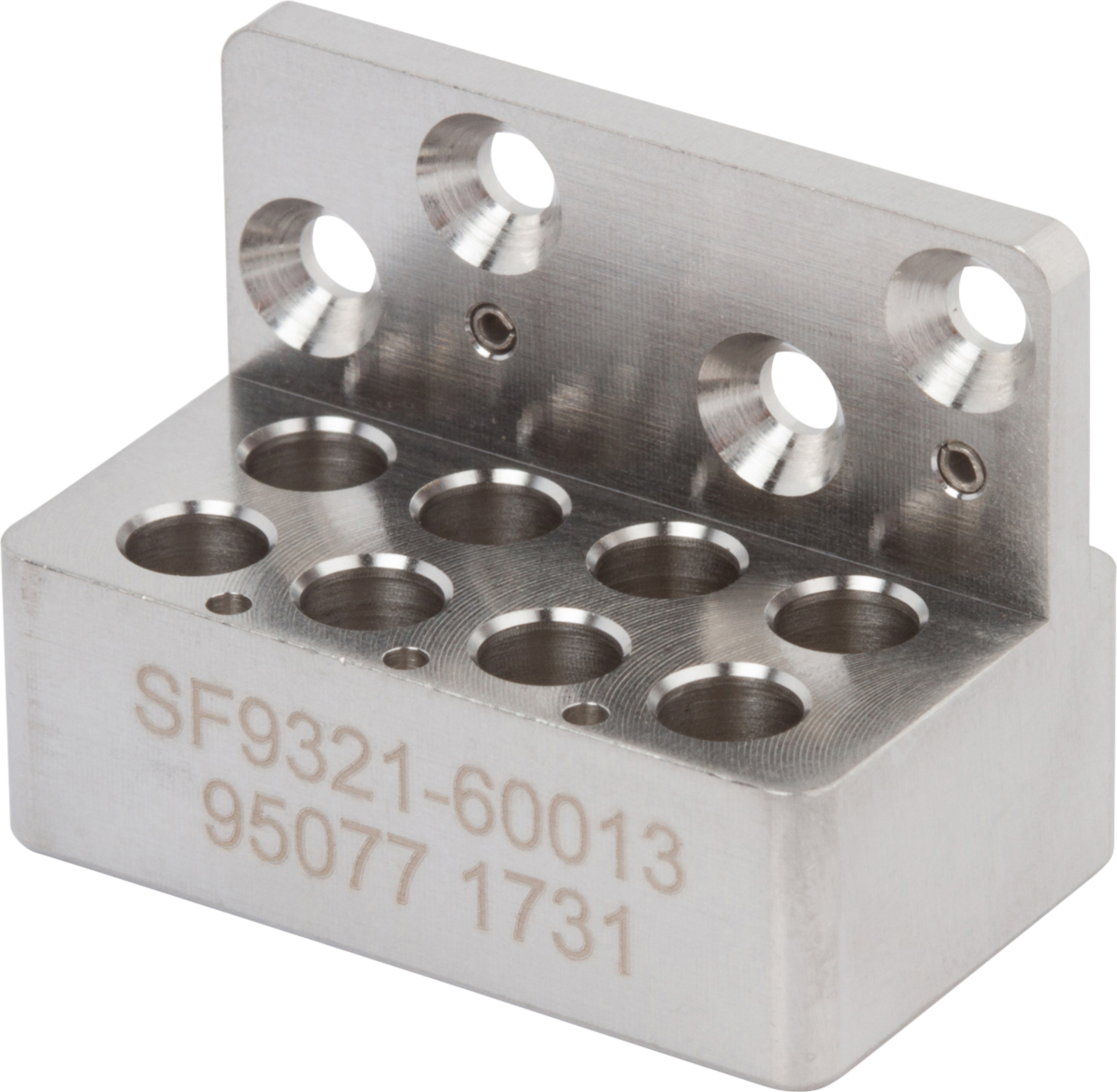

SMPM VITA 67.2 Plug-in Module

Available Inventory: 653
SF9321-60013
VITA Connectors SF9321-60013
Datasheet
Part #   SF9321-60015

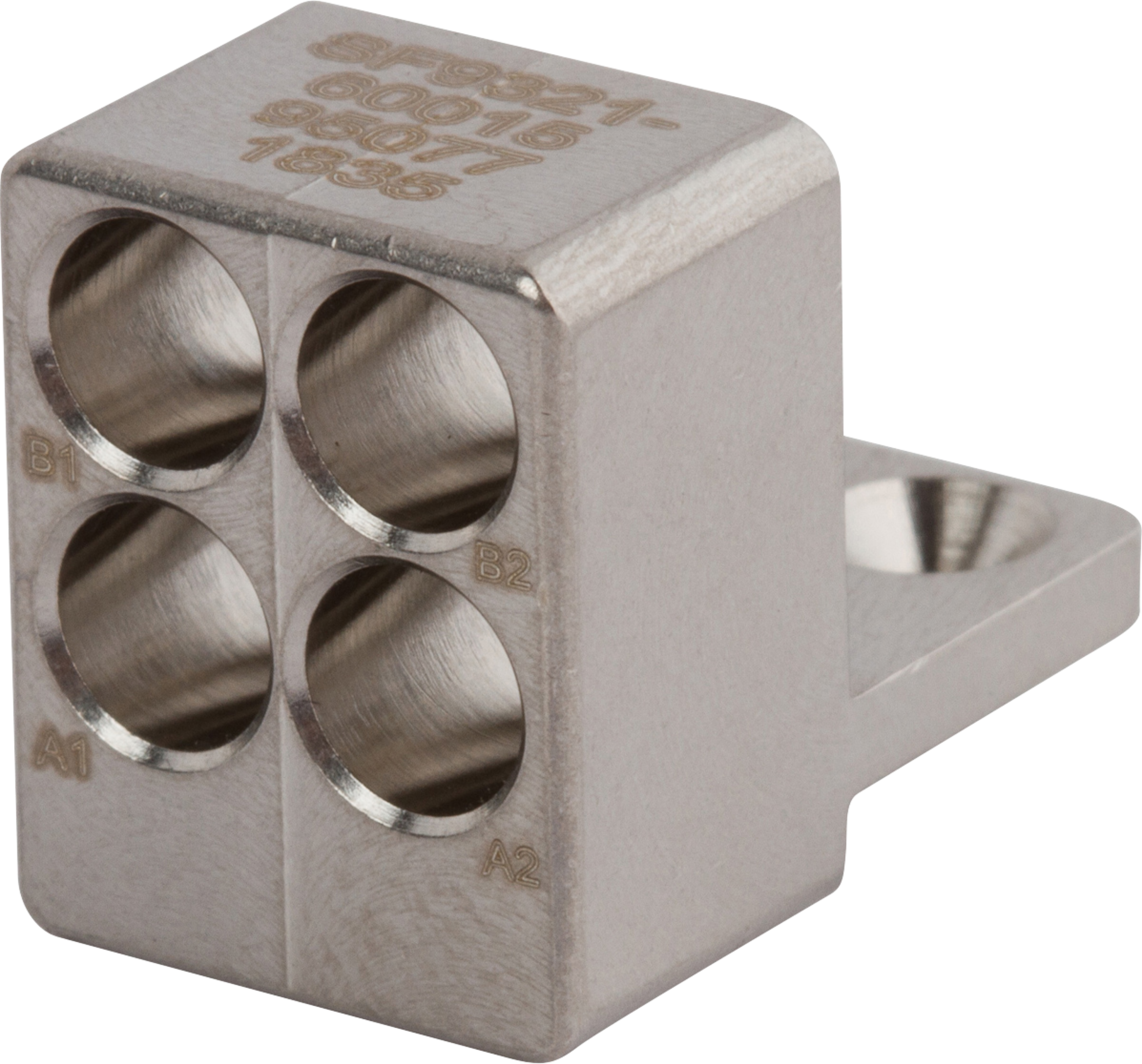

SMPM VITA 67.1 Plug-in Module
