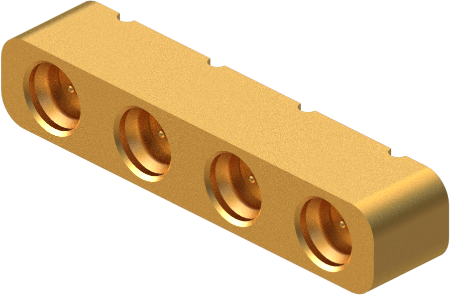

SMPS Male PCB Surface Mount, 4 Port (Glass Seal), SB
P/N: 9311-20028

Name: SMPS Male PCB Surface Mount, 4 Port (Glass Seal), SB, 9311-20028
SKU: 9311-20028
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Family	Mini-D RF
RF Series	SMPS
Gender	Plug (Male)
Orientation (Body)	Straight
Coupling	Push-on
Detent	Smooth Bore
Mounting Type	PCB Vertical Launch
Number of Ports	Multiple
Finish	Gold
Termination Style	Solder
Style	Glass Seal
Electrical
Impedance	50 ohms
Frequency	50 GHz
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mechanical
Mating Cycles - SB	500
Insertion Force - SB	1.2 lbs
Mating Cycles - FD	100
Insertion Force - FD	2.5 lbs
Withdrawal Force - SB	1.0 lbs
Withdrawal Force - FD	4.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
