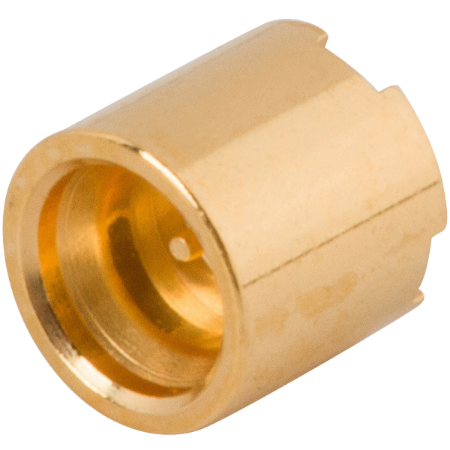

Orientation (Body)
|
Straight |
|
Gender
|
Plug (Male) |
|
Coupling
|
Push-on |
|
RF Series
|
SMPS |
|
Detent
|
Smooth Bore |
|
Number of Ports
|
Single |
|
Termination Style
|
Solder |
|
Style
|
Glass Seal |
|
Mounting Type
|
PCB Vertical Launch |
|
Finish
|
Gold |
|
Impedance
|
50 ohms |
|
Frequency
|
65 GHz |
|
Shielding Effectiveness
|
≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
|
Dielectric withstanding Voltage
|
250 VRMS |
|
Mating Cycles - SB
|
500 |
|
Mating Cycles - FD
|
100 |
|
Insertion Force - SB
|
1.2 lbs |
|
Insertion Force - FD
|
2.5 lbs |
|
Withdrawal Force - SB
|
1.0 lbs |
|
Withdrawal Force - FD
|
4.5 lbs |
|
Axial Misalignment
|
.010” Max |
|
Radial Misalignment
|
3° Max |
|
Temperature Rating
|
-65°C to +165°C |
|
Vibration
|
MIL-STD-202, Method 204, Condition D |
|
Corrosion (salt spray)
|
MIL-STD-202, Method 101, Condition B |
|
Shock
|
MIL-STD-202, Method 213, Condition I |
|
Thermal Shock
|
MIL-STD-202, Method 107, Condition B |
|
Moisture Resistance
|
MIL-STD-202, Method 106, Less Step 7B |
|
Barometric Pressure (Altitude)
|
MIL-STD-202, Method 105, Condition C, 70k Ft. |
