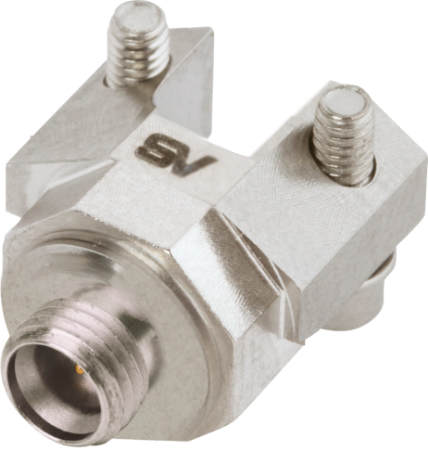

Threaded SMPM Male Solderless PCB Edge Launch Connector, 2 Hole, with 4.76mm Screws, SB
P/N: 3211-60407-1S

Name: Threaded SMPM Male Solderless PCB Edge Launch Connector, 2 Hole, with 4.76mm Screws, SB
SKU: 3211-60407-1S
Availability: OutOfStock

Loading...

Downloads

Products specifications

Attribute name	Attribute value
RF Series	SMPM
Gender	Plug (Male)
Orientation (Body)	Straight
Mounting Type	PCB Edge Launch
Coupling	Threaded
Detent	Smooth Bore
Termination Style	Solder-free
Number of Ports	Single
Finish	Passivated
Body Style	2 Hole
Family	Threaded SMPM
Electrical
Frequency	40 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mechanical
Mating Cycles - FD	100
Mating Cycles - SB	500
Insertion Force - SB	2.5 lbs
Insertion Force - FD	4.5 lbs
Withdrawal Force - SB	1.5 lbs
Withdrawal Force - FD	6.5 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
