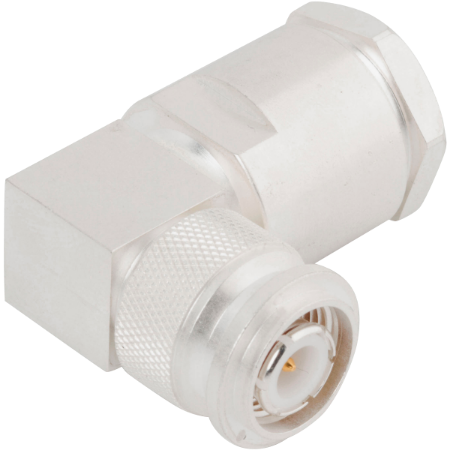

TNC Male Cable Connector, R/A for RG-214 Cable
P/N: 4100-0001

Loading...
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Number of Ports Single
Cable Type RG-214
Finish Silver
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Number of Ports Single
Cable Type RG-214
Finish Silver
Electrical
Frequency 11 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   4011-00043

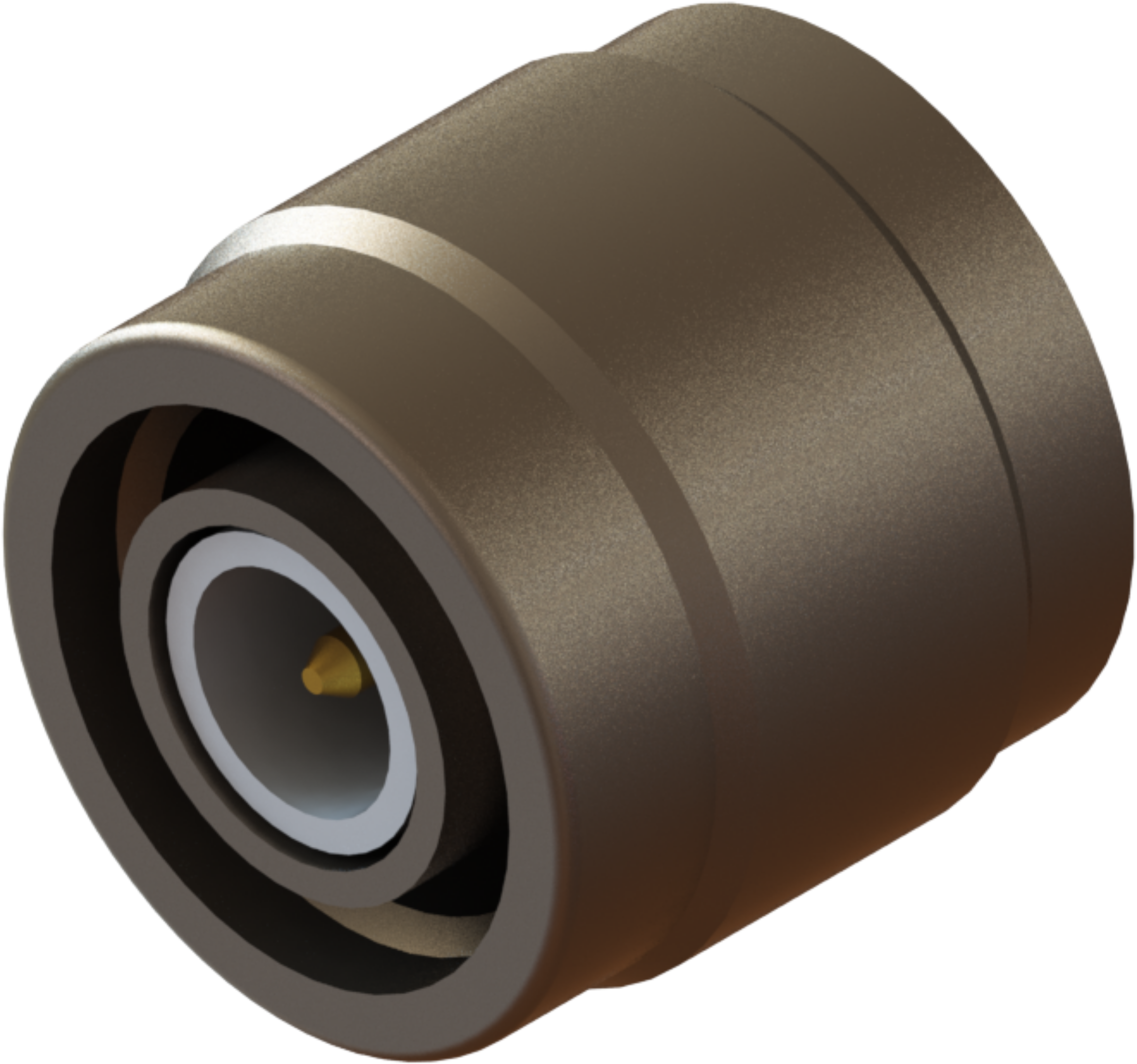

TNC Male Connector for .085 Cable

Available Inventory: 0
4011-00043
TNC Connectors 4011-00043
Datasheet
Part #   4021-00064

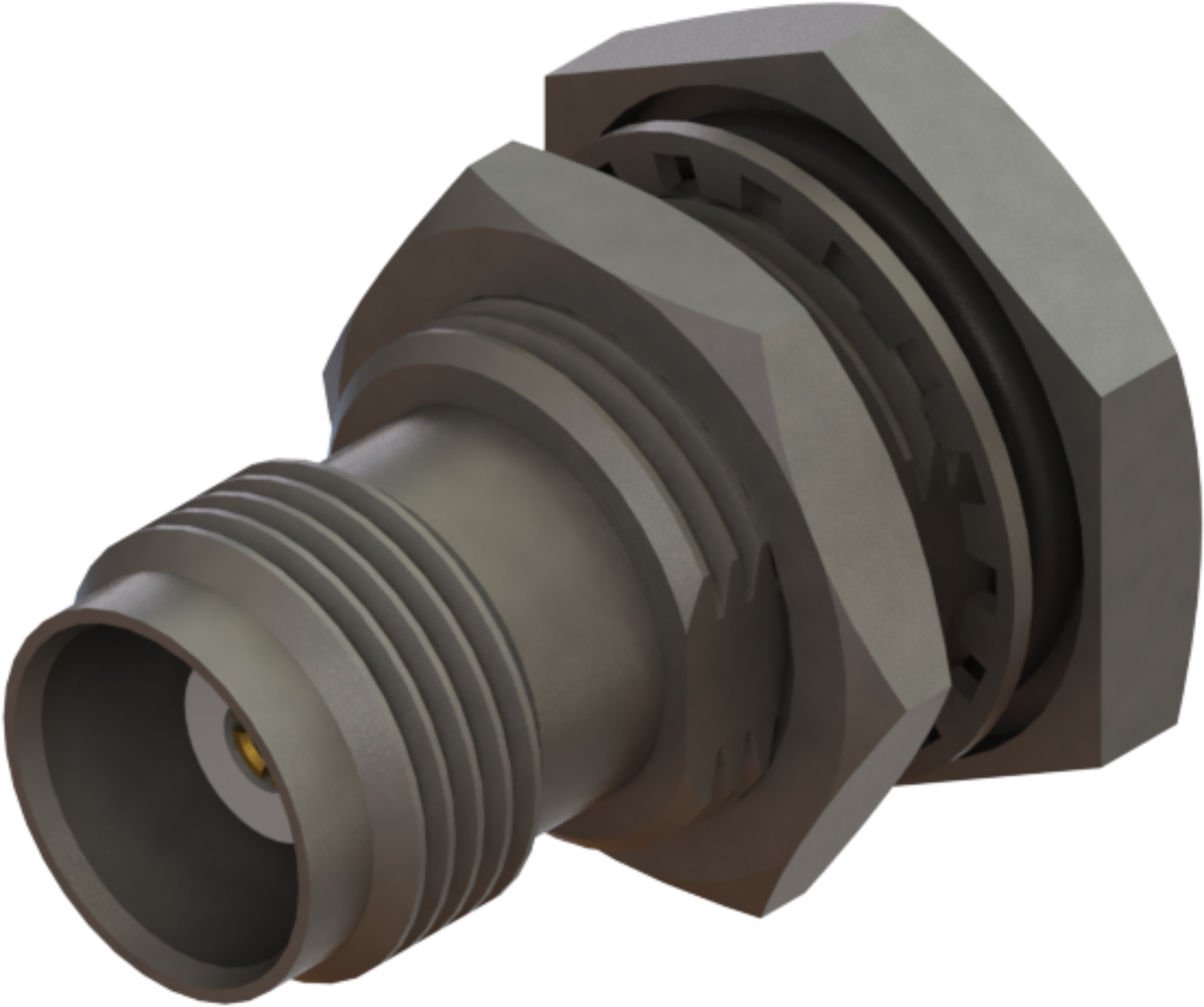

TNC Female Bulkhead Connector for .085 Cable
