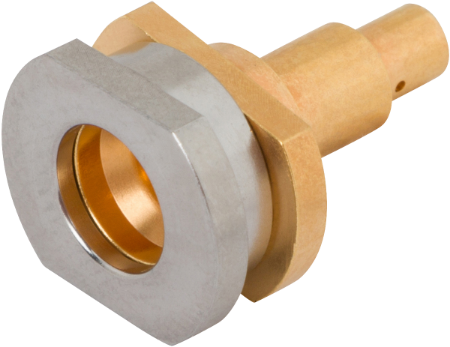

BMB Male Bulkhead Connector for .085 Cable, FD
P/N: 4911-60031

Name: BMB Male Bulkhead Connector for .085 Cable, FD
SKU: 4911-60031
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Gender	Plug (Male)
Cable Type	0.085 Flexible Coax
Orientation (Body)	Straight
Coupling	Push-on
Finish	Passivated
RF Series	BMB
Body Style	Jamnut/Bulkhead
Detent	Full Detent
Electrical
Impedance	50 ohms
Frequency	22 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1500 VRMS
Mechanical
Mating Cycles	500
Insertion Force	2.0 lbs
Withdrawal Force	6 oz
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
