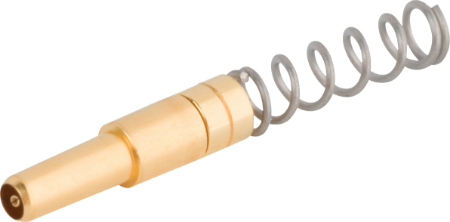

RF Series
|
NanoRF |
|
Gender
|
Jack (Female) |
|
Orientation (Body)
|
Straight |
|
Coupling
|
Push-on |
|
Mounting Type
|
Snap-in |
|
Number of Ports
|
Single |
|
Termination Style
|
Solder |
|
Finish
|
Gold |
|
Cable Type
|
0.047 Flexible Coax |
|
Family
|
SOSA Aligned, VITA 67 |
|
Cable Builder Left Image
|
28323 |
|
Cable Builder Right Image
|
28324 |
|
Frequency
|
70 GHz |
|
Impedance
|
50 ohms |
|
Dielectric withstanding Voltage
|
250 VRMS |
|
Shielding Effectiveness
|
≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz |
|
Mating Cycles
|
500 |
|
Insertion Force
|
2.5 lbs (per contact) |
|
Withdrawal Force
|
0.315 lbs |
|
Temperature Rating
|
-55°C to +125°C |
|
Corrosion (salt spray)
|
MIL-STD-202, Method 101, Condition B |
|
Vibration
|
MIL-STD-202, Method 204, Condition D |
|
Shock
|
MIL-STD-202, Method 213, Condition I |
|
Thermal Shock
|
MIL-STD-202, Method 107, Condition B |
|
Moisture Resistance
|
MIL-STD-202, Method 106, Less Step 7B |
|
Barometric Pressure (Altitude)
|
MIL-STD-202, Method 105, Condition C, 70k Ft. |
