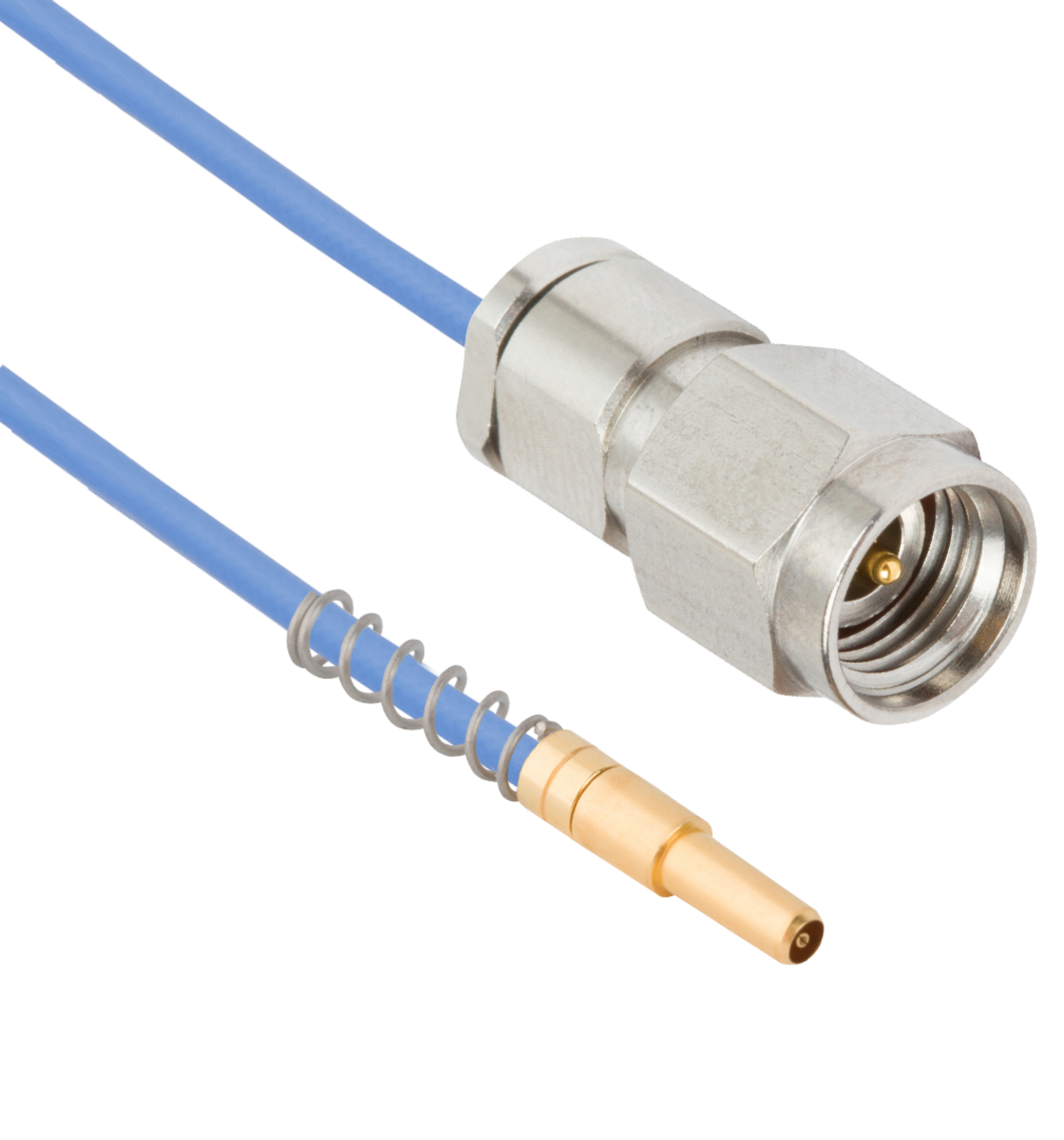

NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .047 Cable
P/N: 7083-0004

Name: NanoRF Female VITA 67.3 Backplane Contact to 2.92mm 12" Cable Assembly for .047 Cable
SKU: 7083-0004
Availability: OutOfStock

Loading...

Downloads

Products specifications

Attribute name	Attribute value
Family	VITA 67, SOSA Aligned
RF Series	NanoRF
Gender	Jack (Female)
Number of Ports	Single
Orientation (Body)	Straight
Termination Style	Solder
Coupling	Push-on
Gender 2	Plug (Male)
Orientation 2 (Body)	Straight
RF Series 2	2.92 mm
Cable Type	0.047 Flexible Coax
Cable Length	12"
Electrical
Frequency	40 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -140 dB, 3 MHz to 30 MHz, ≥ -120 dB, 30 MHz to 3.0 GHz ≥ -100 dB, 3.0 GHz to 30 GHz ≥ -90 dB, 30 to 67.0 GHz
Dielectric withstanding Voltage	250 VRMS
Mechanical
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	0.315 lbs
Mating Cycles	500
Environmental
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Temperature Rating	-55°C to +125°C
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
