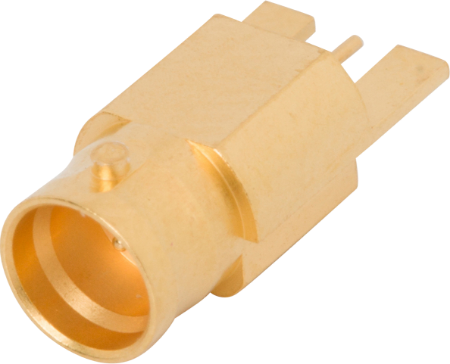

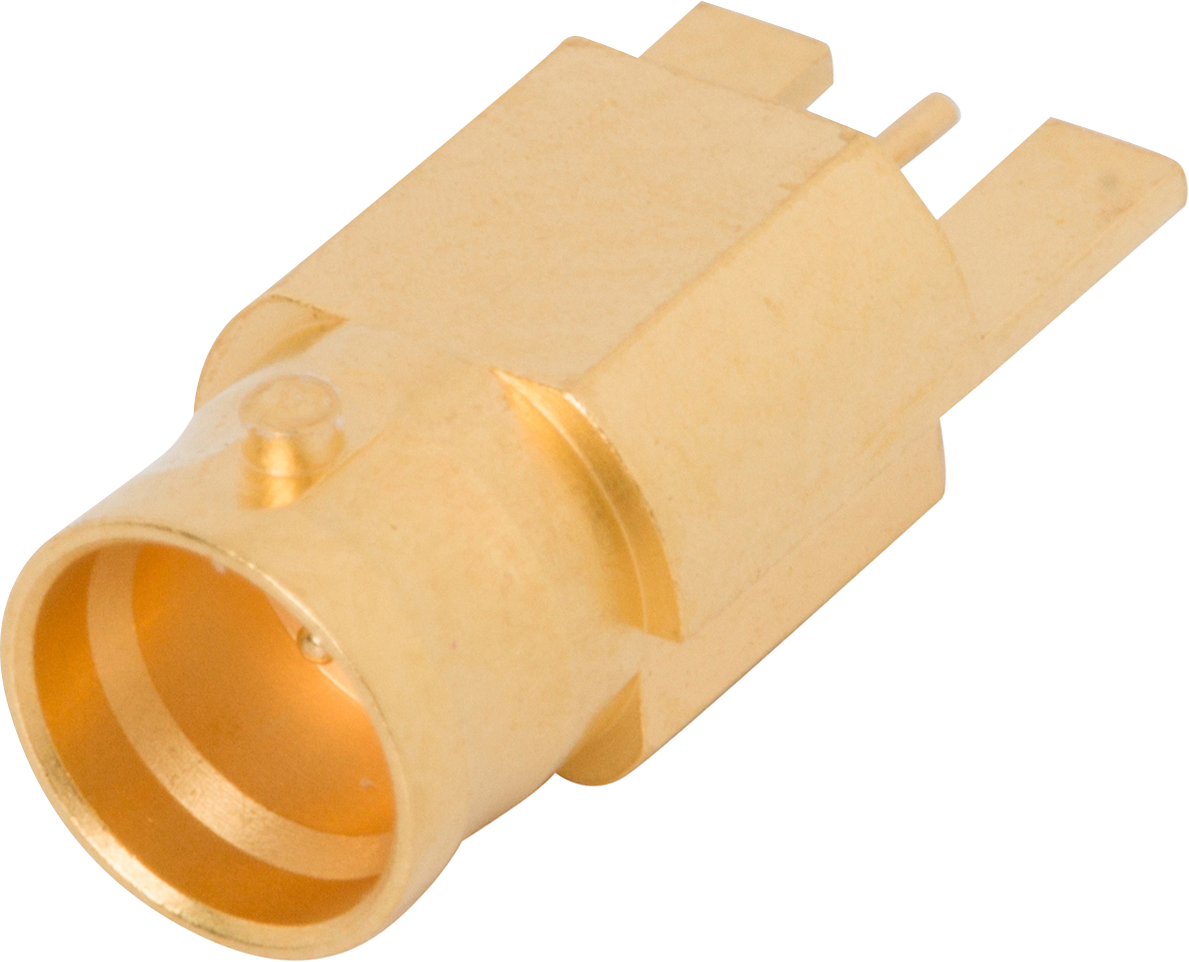

Family
|
QuarterBack |
|
Gender
|
Plug (Male) |
|
Orientation (Body)
|
Straight |
|
RF Series
|
SMP |
|
Coupling
|
Keyed |
|
Keyed Subtype
|
180-180 |
|
Detent
|
Smooth Bore |
|
Mounting Type
|
PCB Edge Launch |
|
Termination Style
|
Solder |
|
Number of Ports
|
Single |
|
Finish
|
Gold |
|
Frequency
|
40 GHz |
|
Impedance
|
50 ohms |
|
Dielectric withstanding Voltage
|
500 VRMS |
|
Shielding Effectiveness
|
≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
|
Mating Cycles - SB
|
1000 |
|
Insertion Force - SB
|
3.0 lbs |
|
Mating Cycles - LD
|
500 |
|
Mating Cycles - FD
|
100 |
|
Insertion Force - FD
|
7.0 lbs |
|
Withdrawal Force - SB
|
0.5 lbs |
|
Insertion Force - LD
|
5.0 lbs |
|
Axial Misalignment
|
.010” Max |
|
Withdrawal Force - LD
|
7.0 lbs |
|
Withdrawal Force - FD
|
9.0 lbs |
|
Radial Misalignment
|
3° Max |
|
Temperature Rating
|
-65°C to +165°C |
|
Shock
|
MIL-STD-202, Method 213, Condition I |
|
Thermal Shock
|
MIL-STD-202, Method 107, Condition B |
|
Corrosion (salt spray)
|
MIL-STD-202, Method 101, Condition B |
|
Vibration
|
MIL-STD-202, Method 204, Condition D |
|
Barometric Pressure (Altitude)
|
MIL-STD-202, Method 105, Condition C, 70k Ft. |
|
Moisture Resistance
|
MIL-STD-202, Method 106, Less Step 7B |
