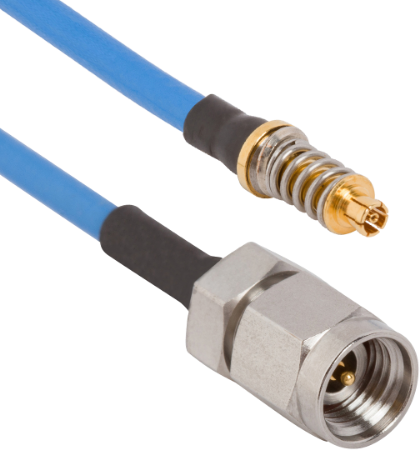

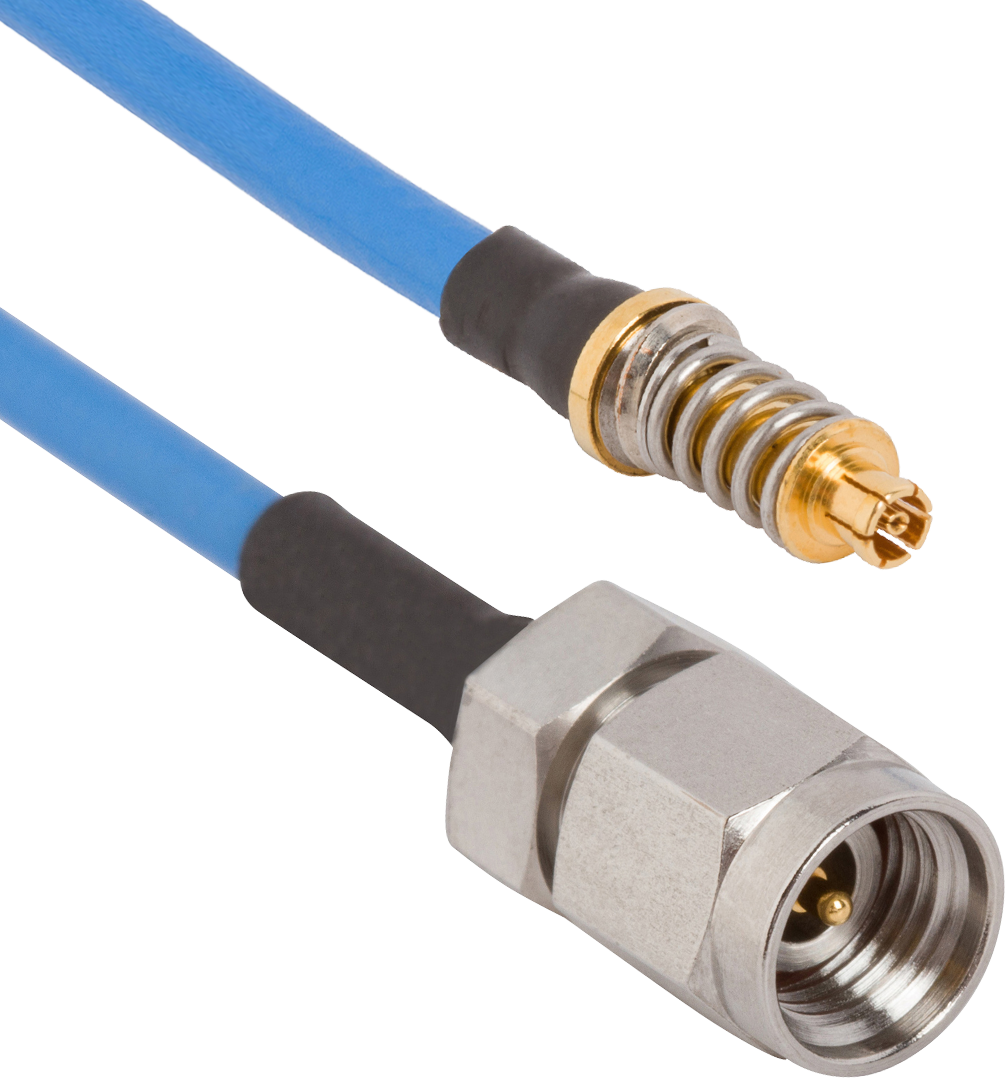

Family
|
VITA 67 |
|
RF Series
|
VITA SMPM |
|
Gender
|
Jack (Female) |
|
Orientation (Body)
|
Straight |
|
Coupling
|
Push-on |
|
Termination Style
|
Solder |
|
RF Series 2
|
2.92 mm |
|
Gender 2
|
Plug (Male) |
|
Orientation 2 (Body)
|
Straight |
|
Cable Type
|
0.085 Flexible Coax |
|
Cable Length
|
6" |
|
Impedance
|
50 ohms |
|
Frequency
|
40 GHz |
|
Shielding Effectiveness
|
≥ -100 dB, DC to 26.5 GHz |
|
Dielectric withstanding Voltage
|
325 VRMS |
|
Mating Cycles
|
500 |
|
Insertion Force
|
2.5 lbs (per contact) |
|
Withdrawal Force
|
1.5 lbs |
|
Temperature Rating
|
-65°C to +165°C |
|
Vibration
|
MIL-STD-202, Method 204, Condition D |
|
Corrosion (salt spray)
|
MIL-STD-202, Method 101, Condition B |
|
Shock
|
MIL-STD-202, Method 213, Condition I |
|
Thermal Shock
|
MIL-STD-202, Method 107, Condition B |
|
Moisture Resistance
|
MIL-STD-202, Method 106, Less Step 7B |
|
Barometric Pressure (Altitude)
|
MIL-STD-202, Method 105, Condition C, 70k Ft. |
