SMPM Female VITA 67.3 to SMPM Female VITA 67.3 6" Cable Assembly for .047 Cable, 7032-9735

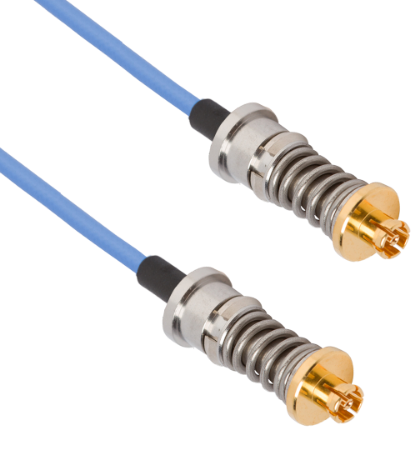

SMPM Female VITA 67.3 to SMPM Female VITA 67.3 12" Cable Assembly for .047 Cable

P/N: 7032-9730
Downloads
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Gender 2 Jack (Female)
RF Series 2 VITA SMPM
Gender Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Withdrawal Force 1.5 lbs
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:32:49 AM

*
*
*
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPM
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Gender 2 Jack (Female)
RF Series 2 VITA SMPM
Gender Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Withdrawal Force 1.5 lbs
Mating Cycles 500
Insertion Force 2.5 lbs (per contact)
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
