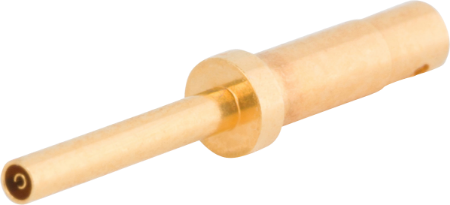

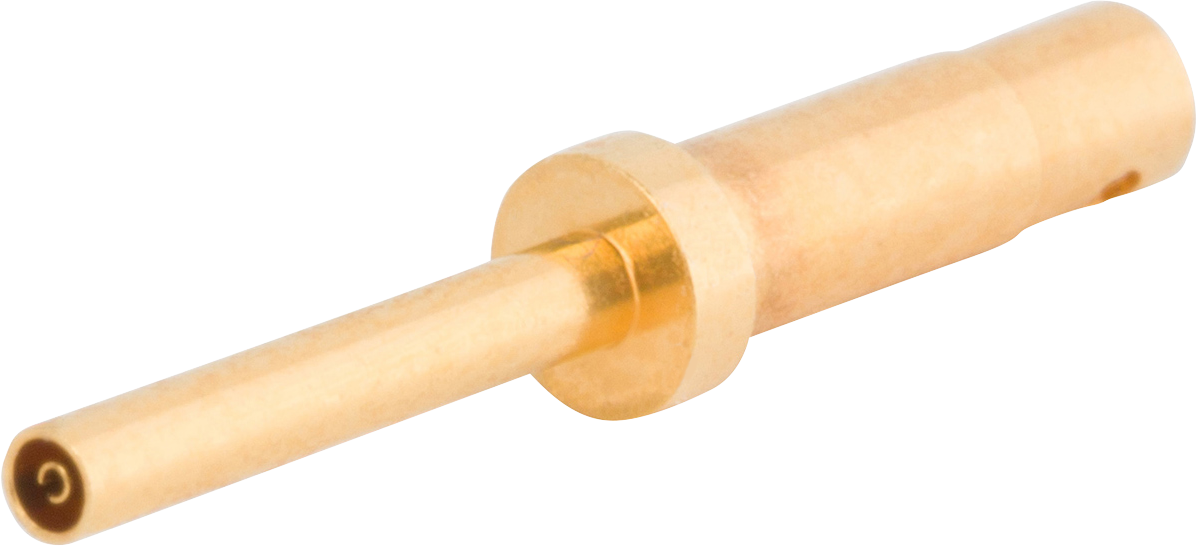

SV20 Pin Micro38999 Contact (Size 20HD) for .047 Cable

P/N: 2041-40002

Products specifications

Attribute name	Attribute value
Gender	Pin
Cable Type	0.047 Flexible Coax
Mounting Type	Micro38999 2M, Series 80, MIL-DTL-32689
Style	Size 20
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
RF Series	SV20
Electrical
Impedance	50 ohms
Frequency	40 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	150 VRMS
Mechanical
Mating Cycles	500
Environmental
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

Your name *

Your email *

Enquiry *

Products specifications

Attribute name	Attribute value
Gender	Pin
Cable Type	0.047 Flexible Coax
Mounting Type	Micro38999 2M, Series 80, MIL-DTL-32689
Style	Size 20
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
RF Series	SV20
Electrical
Impedance	50 ohms
Frequency	40 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	150 VRMS
Mechanical
Mating Cycles	500
Environmental
Temperature Rating	-55°C to +125°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B

Customers Also Viewed

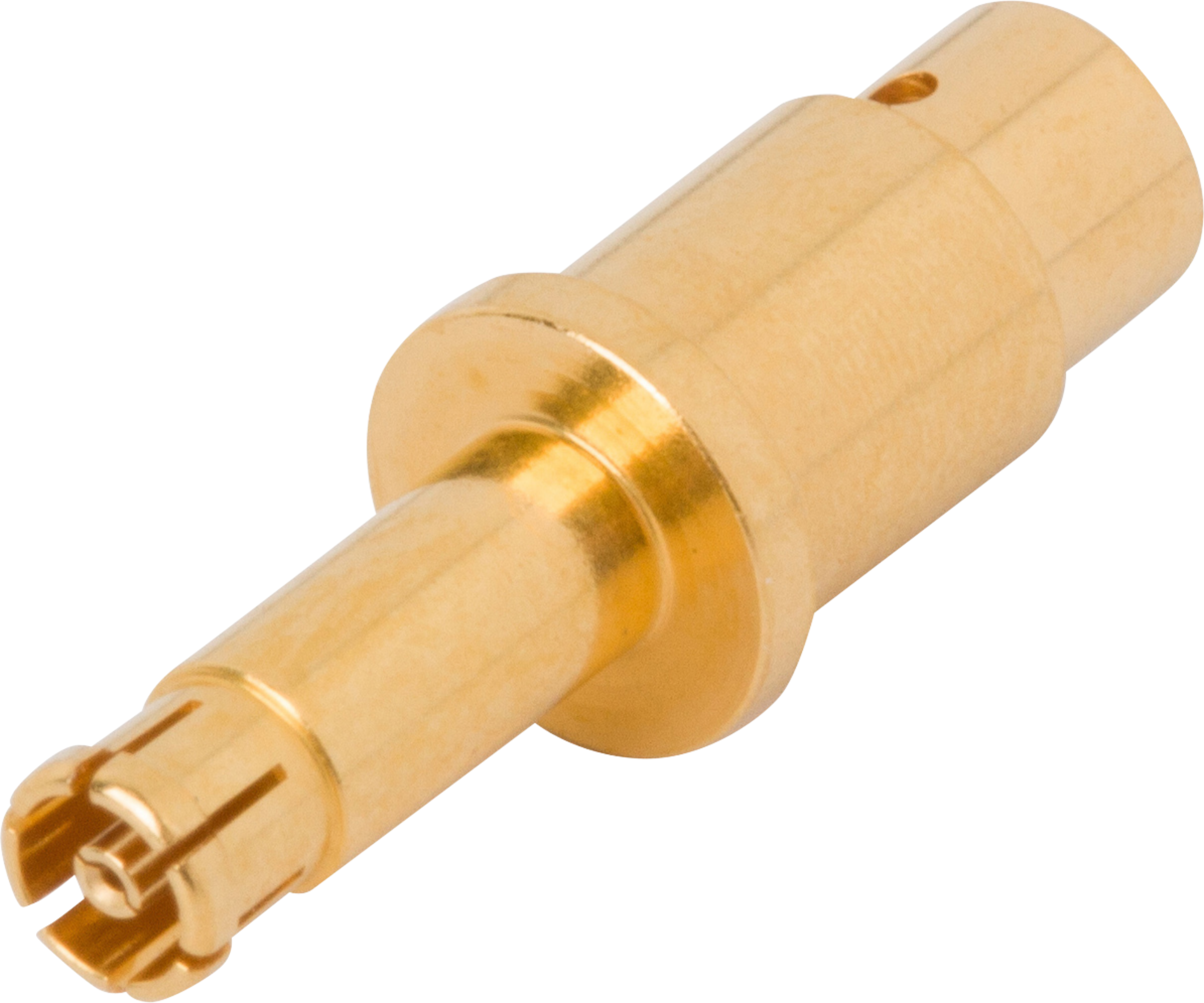

SMPS Pin D38999 Contact (Size 16) for .047 Cable

SMPS Connectors 9921-40001

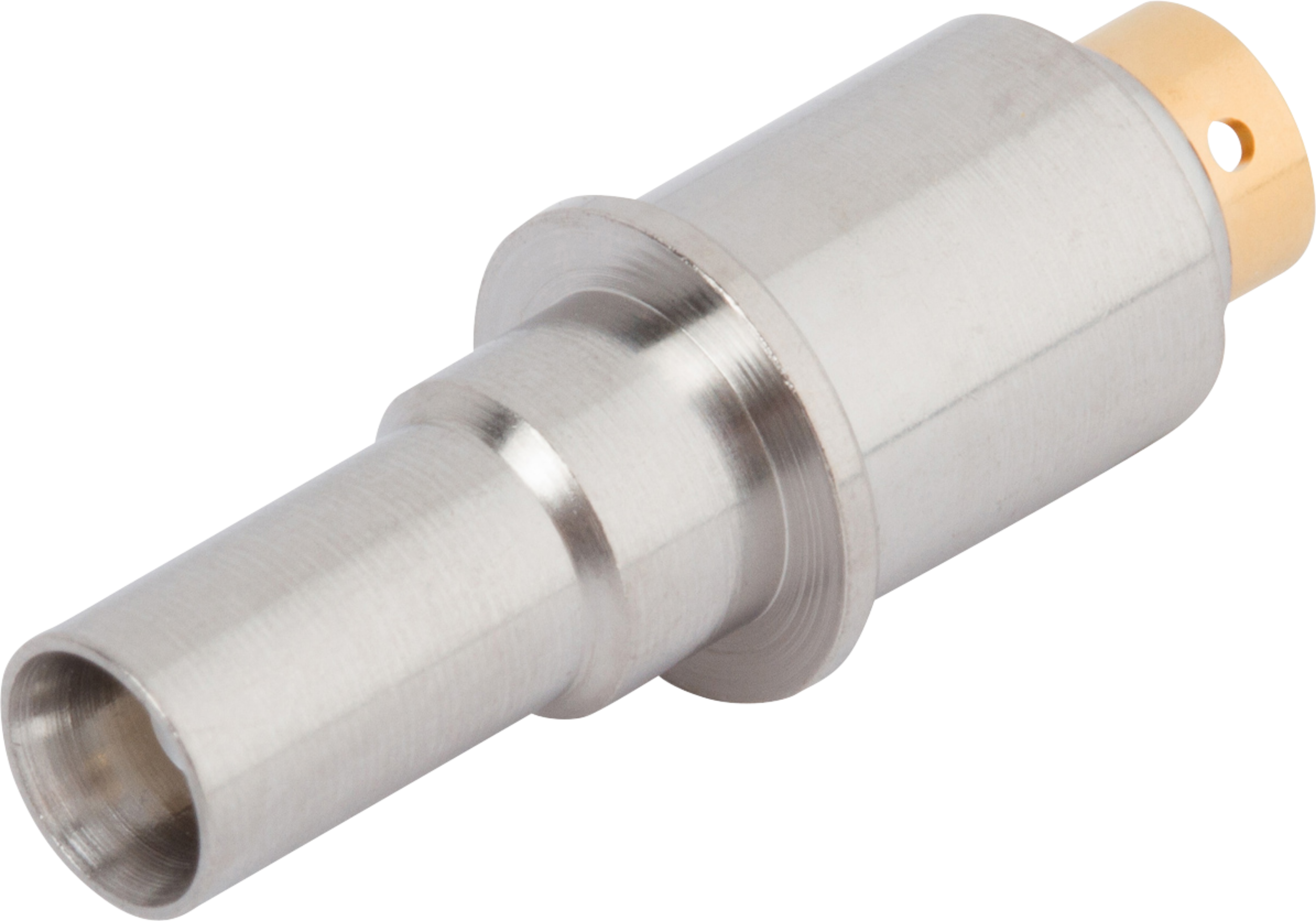

BMZ Connectors SF9821-6000
