Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Socket |
| Cable Type | 0.047 Flexible Coax |
| Mounting Type | D38999 Series I, III and IV |
| Style | Size 20 |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series | SV20 |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 150 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Environmental | |
| Temperature Rating | -55°C to +125°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed
9921-40001

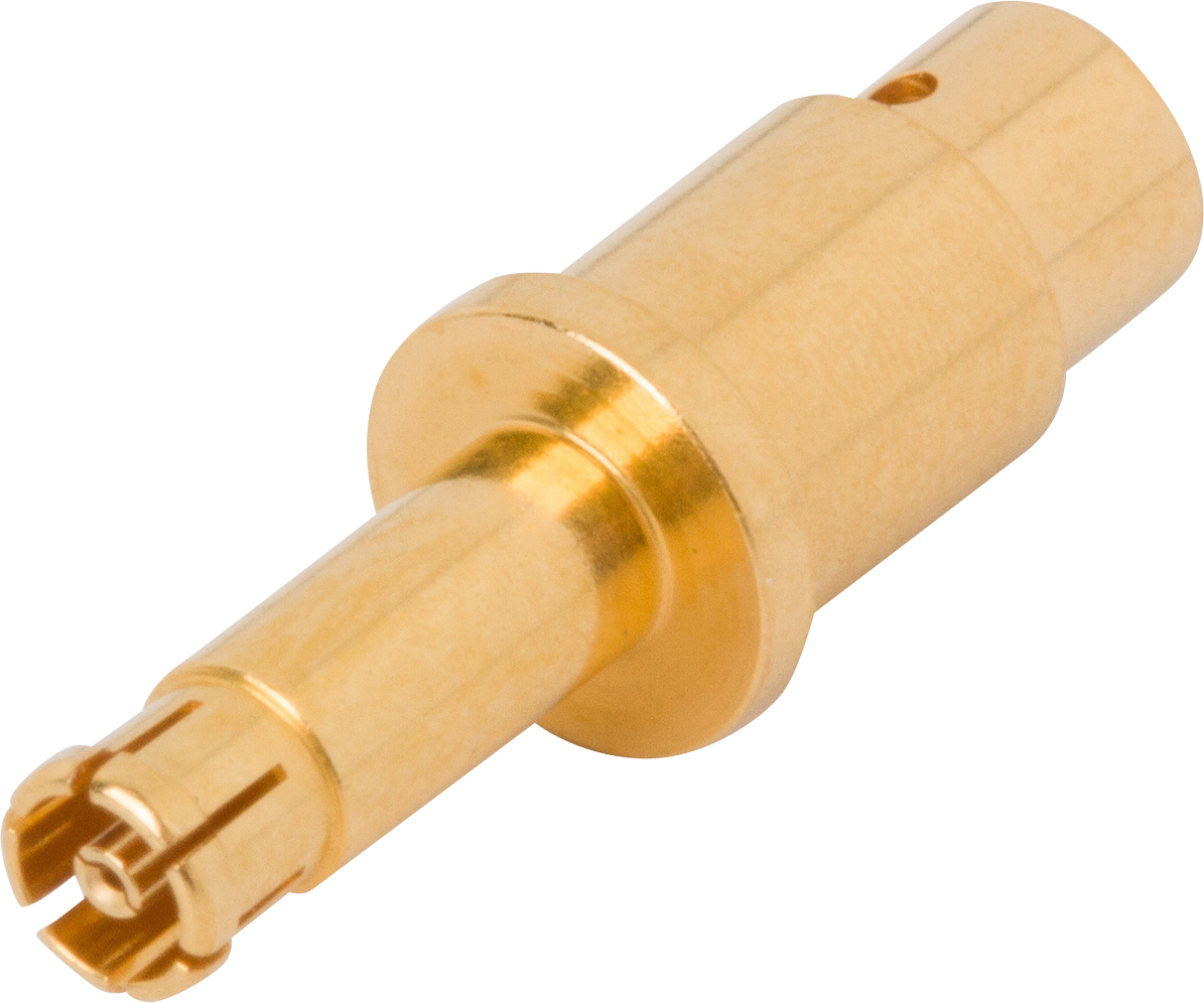

SMPS Connectors 9921-40001
2041-40001
SV20 Connectors 2041-40001
2041-40002

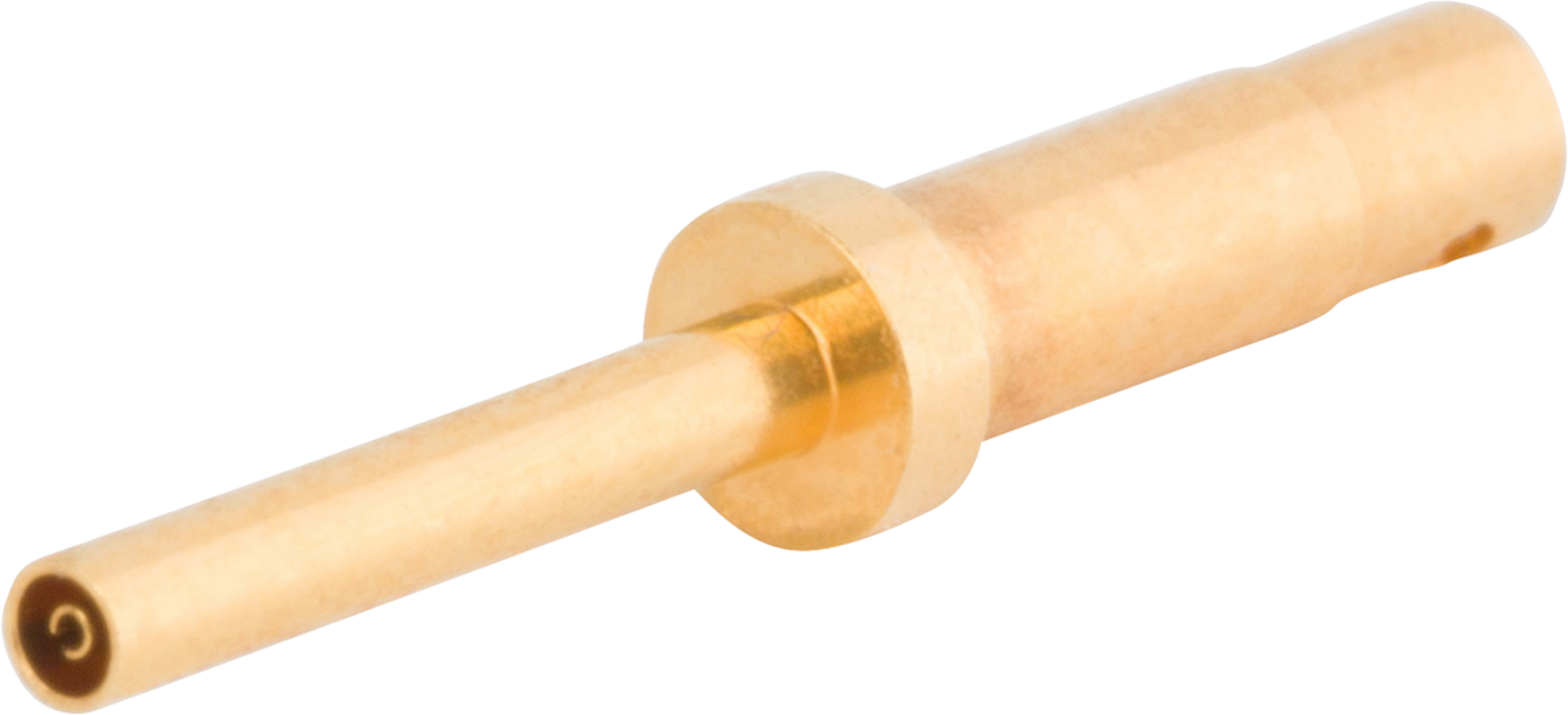

SV20 Contact 2041-40002
