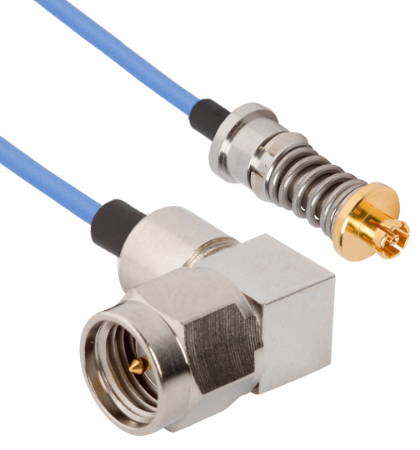

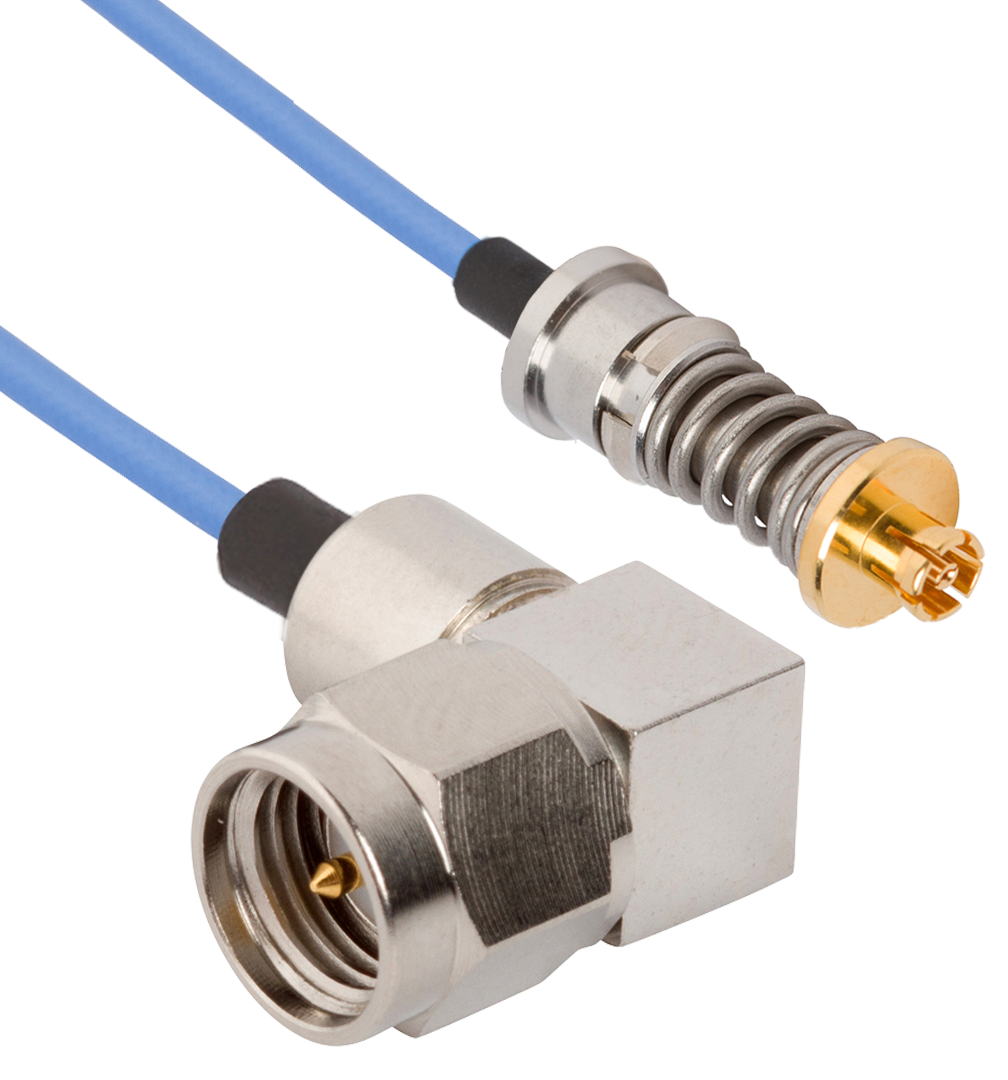

SMPM Female VITA 67.3 to SMA Male R/A 6" Cable Assembly for .047 Cable, 7032-9732

SMPM Female VITA 67.3 to SMA Male R/A 6" Cable Assembly for .047 Cable

P/N: 7032-9732
Downloads
Products specifications
Attribute name Attribute value
Family VITA 67, SOSA Aligned
RF Series VITA SMPM
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Mounting Type Snap-in
Termination Style Solder
Number of Ports Single
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Insertion Force 2.5 lbs (per contact)
Mating Cycles 500
Withdrawal Force 1.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
